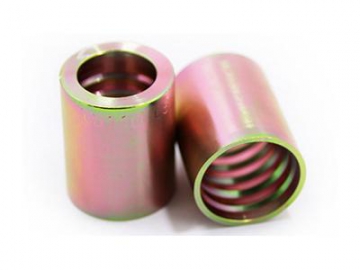

01100 Ferrule for 1-Wire Braid Hose

01100 Ferrule for 1-Wire Braid Hose
01100 Ferrule for 1-Wire Braid Hose
Request a Quote

Application: for use with hydraulic braided hoses

Materials:
  • Stainless steel ferrule for 1-wire braid hose
  • Carbon steel ferrule for 1-wire braid hose
01100 Ferrule for 1-Wire Braid Hose List

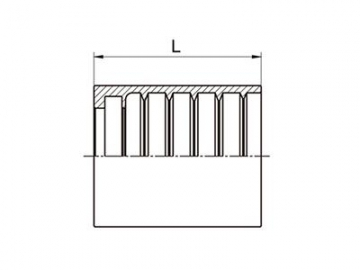

Part No. Hose Bore Dimensions
DN DASH D L
01100-04 6 04 19 30
01100-05 8 05 21 32
01100-06 10 06 23 32
01100-08 12 08 28 34
01100-10 16 10 31 39
01100-12 20 12 34 43
01100-14 22 14 37 43
01100-16 25 16 41 50
01100-20 32 20 49 59
01100-24 40 24 55 74
