4 Axis CNC Router (with Rotary Axis), SK-EPG Series (EPG2012/EPG3012 optional)
| Max. diameter of workpiece | 200/300mm |
| Max. length of workpiece | 1100mm |
| Spindle power | 2.2KW |
| Number of spindles | 4 (customizable) |
| Spindle speed | 24000rpm/min |
| Machining accuracy | ±0.1mm |
| Max. machining speed | 15m/min |
| Max. travel speed | 30m/min |
| Control | G code, HPGL etc. |
| Voltage | 220V 50HZ (customizable) |
| Dimension | 2300*2300*2000mm |
| Weight | 2000kg |

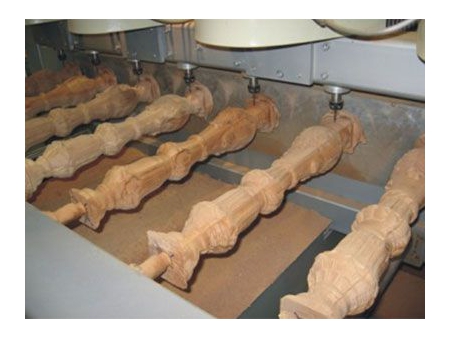

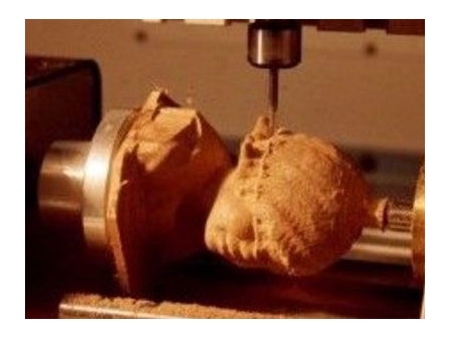

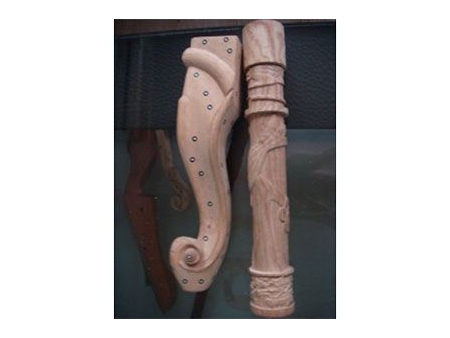

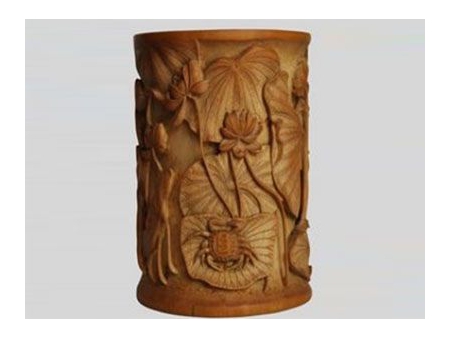

4 axis CNC router is mainly used for machining and engraving on cylindrical workpieces, such as balusters, newel posts, chair legs, furniture legs, table legs, etc.
-
Robust welded steel structure, hardened by tempering and aging treatment, ensuring high speed operation without vibration and deformation;
-
-

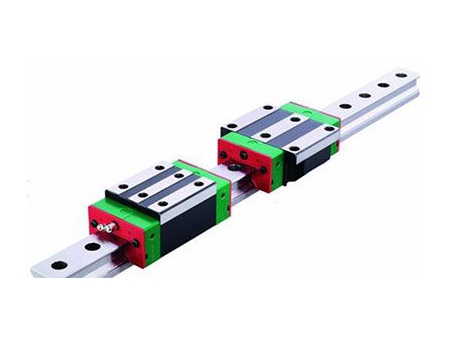

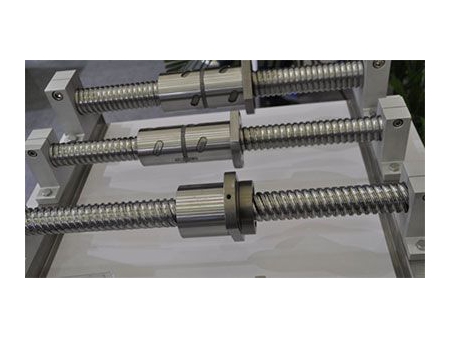

Adopting square linear guide rail and world’s well-known brand ballscrew, ensuring high precision and high speed; Y axis features dual-drive rack and pinion mechanism to provide great accuracy, smooth motion and heavy load capacity;
-
-

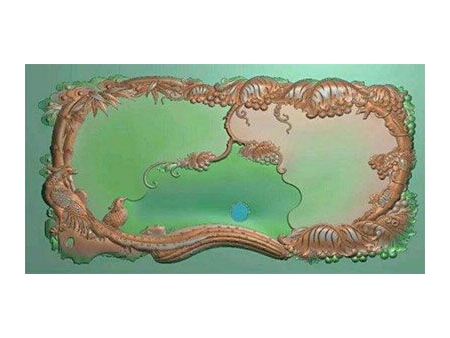

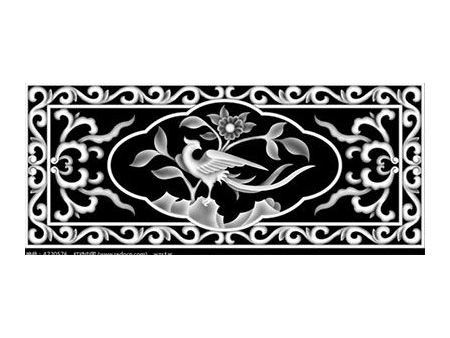

Capable of carving any shape and design, supporting UG, ArtCAM, Type3, CorelDraw, Proe, Artcut, JDPaint and other CAD/CAM software that can generate G-code;
-
-

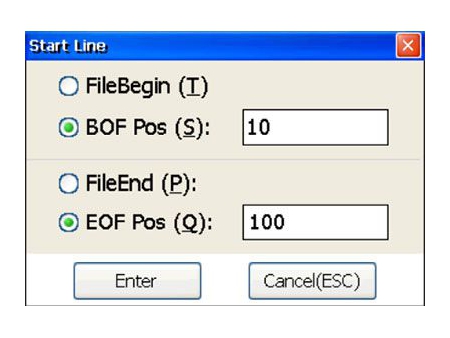

Utilizing 4-axis DSP controller or PCI motion control card, can realize continuous operation when power failure occurs;
-
-

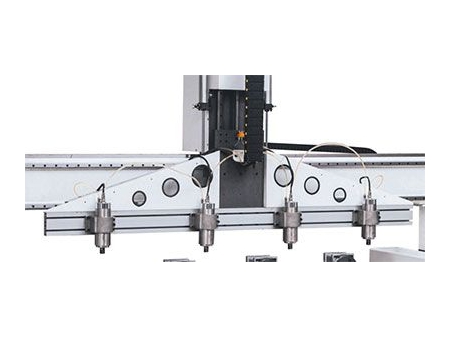

Design of multiple spindles allows this CNC router to be offered with custom configurations of cutting head quantity and motor power according to customers’ specific needs, and the spindle center spacing is adjustable to adapt to workpiece;

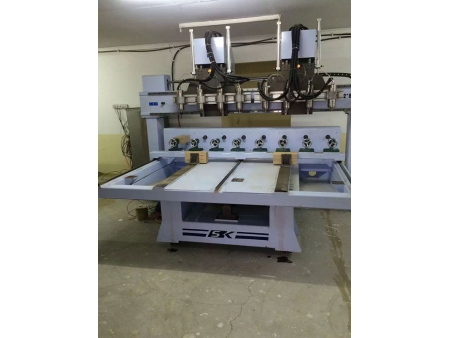

Work table for flat workpieces is available;
