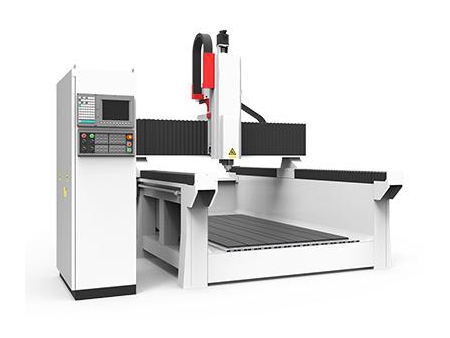

BS1325B Series 3 Axis Gantry CNC Router
Request a Quote
Developed for the manufacturing of small and medium wood and foam molds, the 3 axis gantry CNC router is a compact and cost-effective processing solution compatible with a variety of different materials.
Materials Cut

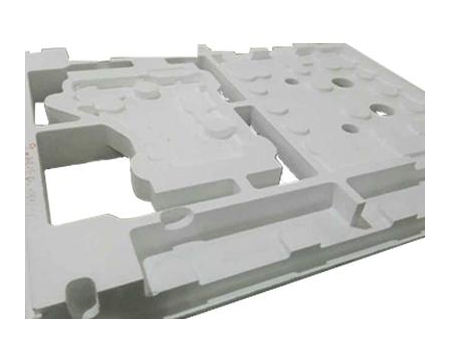

Foam, wood, carbon fiber, plastic, resin, etc.
Applications
- Woodworking industry: door, furniture, loudspeaker boxes, musical instruments, etc.
- Composite materials industry: plastic parts, FRP parts, rubber products, composite material parts, etc.
- Foundry industry: casting molds, wood molds, foam molds, etc.
- Automobile industry: automotive molds, car interior parts, auto parts molds, etc.
- Model industry: various 3D models, landscape models, exhibition models, architecture models, etc.
- Sculpture: human form sculptures, animals, plants, decorative pieces, etc.
- Film industry: movie props, activity props, etc.
- Ship industry: ship propellers, steamboat accessories, etc.
Features

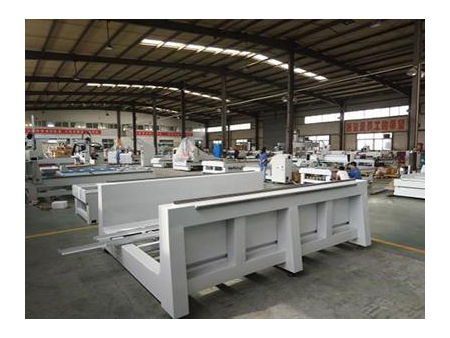

- The machine body is produced from welded square tubes and the base is extremely firm to guarantee stability during operation. It can be counted on for a service life of more than 10 years.

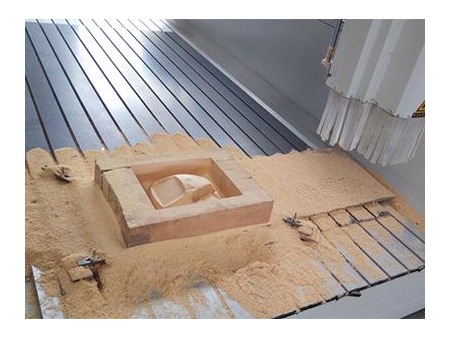

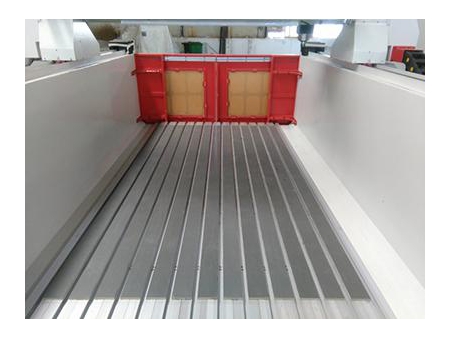

- Aluminum table.

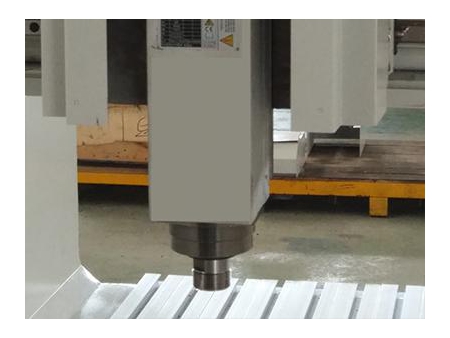

- 6KW air cooled spindle

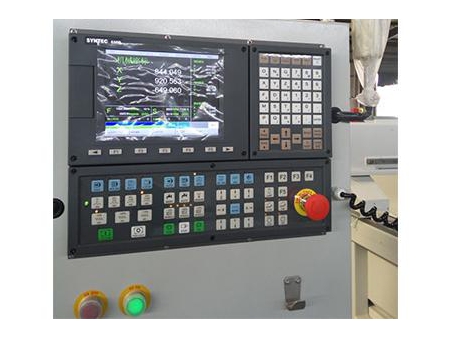

- It is equipped with a Syntec control system which features a high performance processor.

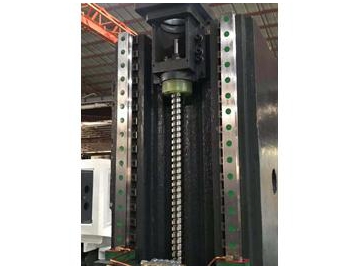

- Its X and Y axis features a rack and pinion drive while the Z axis uses a screw drive.

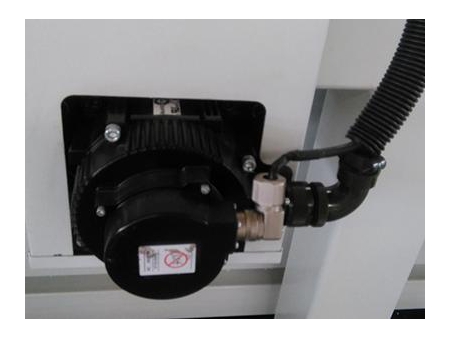

- The CNC router is servo motor driven.

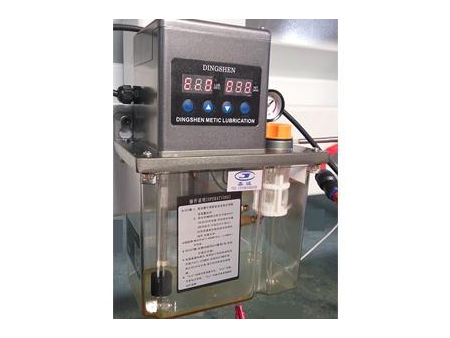

- The oil lubrication system keeps the track lubricated to prolong the service life of the machine.
- The oil lubrication system can automatically lubricate important parts such as the rack and screw, enhancing performance and stability.
Parameters
| Series | F1-BS1325B |
| Stroke | 1300*2500*600mm |
| Idle speed | ≥30000mm/min |
| Processing speed | ≥20000mm/min |
| Spindle power | 6KW |
| Spindle speed | 18000r/min |
| File format | G Code |
| Working voltage | 380/220V 3PH (Customizable) |
| Dimensions | 3 x 4 x 3 m |
| Weights | 2000 KGS |
Options
- Removable steel table
- 7.5KW water cooled spindle
- Vacuum cleaner
- Front protective door

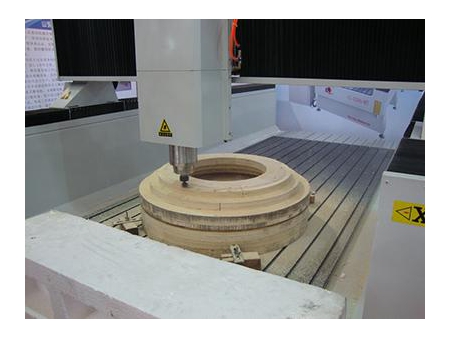

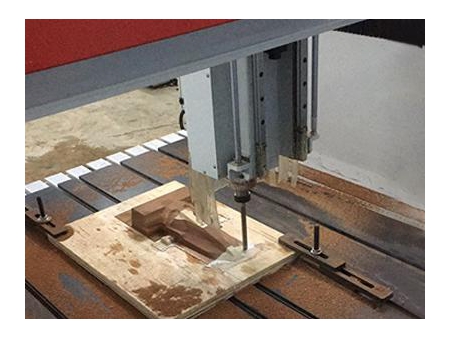

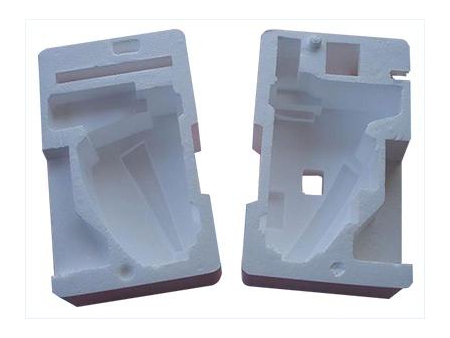

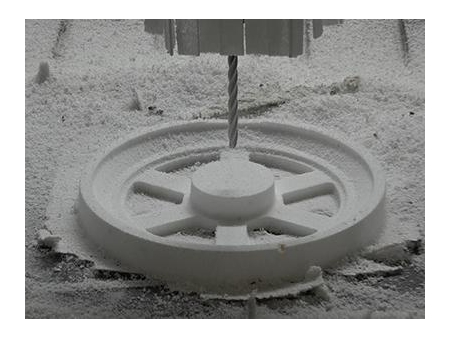

Gallery
