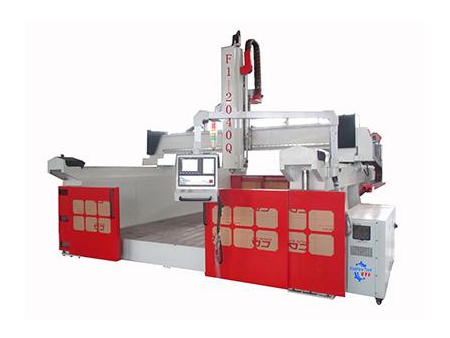

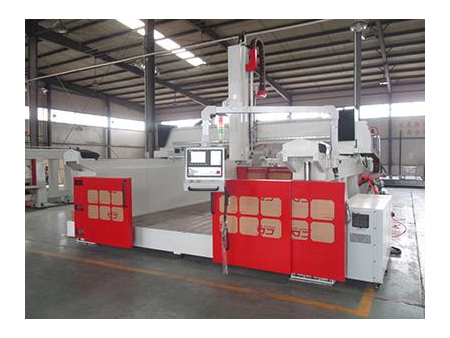

SF2040Q-3S Series Large Format Gantry CNC Router
Request a Quote
Our large format gantry CNC router is an incredibly powerful piece of technology equipped with a 3 axis linkage control system. It is suitable for the 3D processing of large-format models in the foundry industry.
Materials Cut

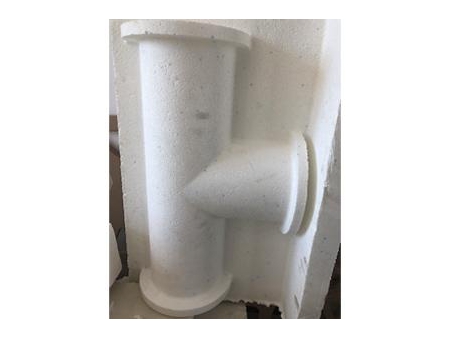

Wood, foam, plastic, fiber reinforce plastic, and other decoration materials.
Applications

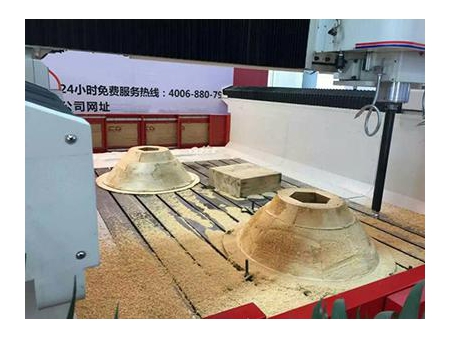

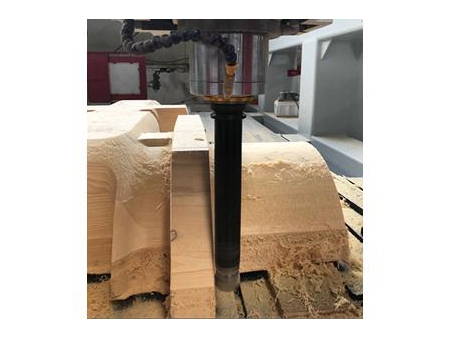

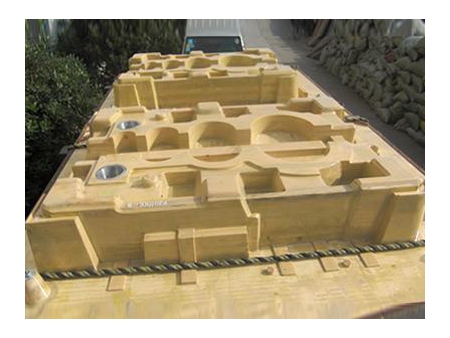

This gantry CNC router was developed for engraving large format non-metal molds. This type of router is especially ideal for the production of wood and foam automotive molds with fine machining.
Features

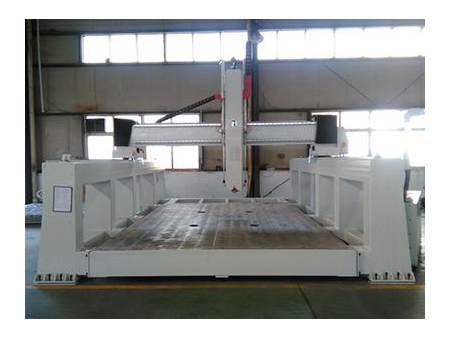

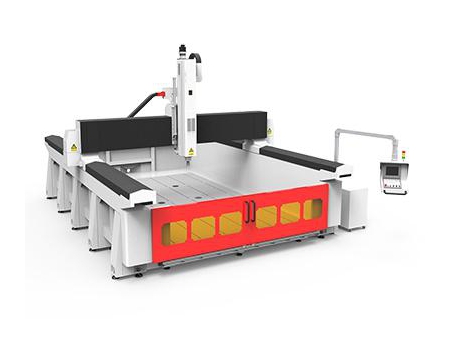

- The CNC router is equipped with a movable gantry and fixed table.

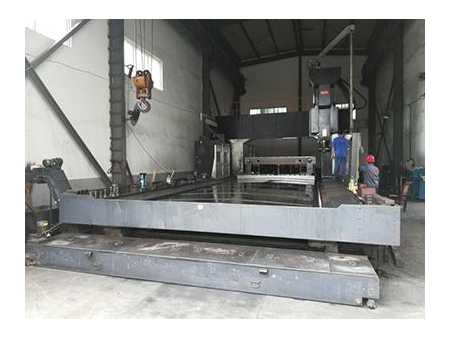

- The heavy-duty machine frame features high rigidity, maximizing operating stability.
- It is equipped with a servo motor and its spindle speed is 0-12000r/min.

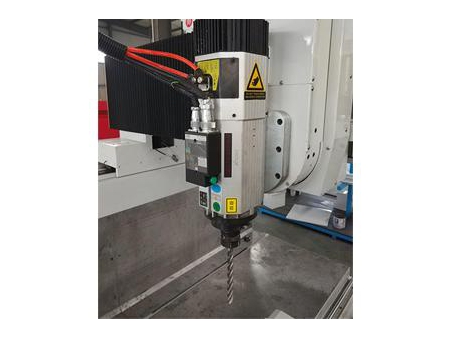

- The BT40 spindle allows for easy tool changing.

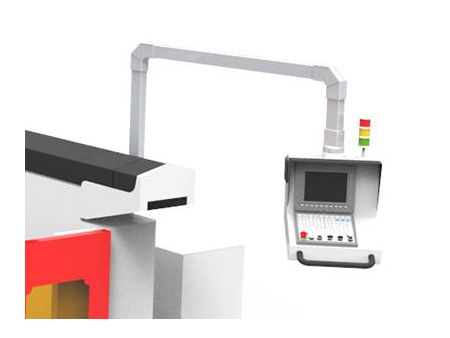

- The cantilever-style control panel can rotate within a 270° radius for convenient operation.

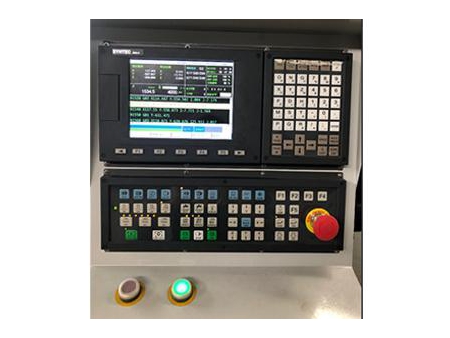

- A Syntec control system supports dynamic simulation, displaying dynamic graphics in real time.

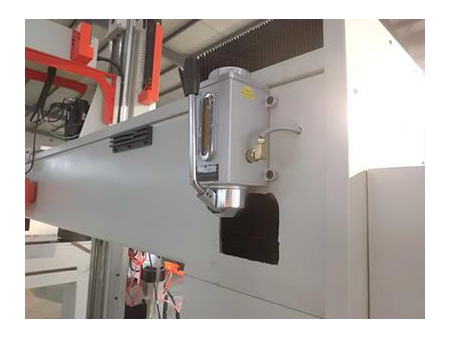

- It is equipped with an oil lubrication system, keeping parts running efficiently to prolong the equipment’s useful lifetime.

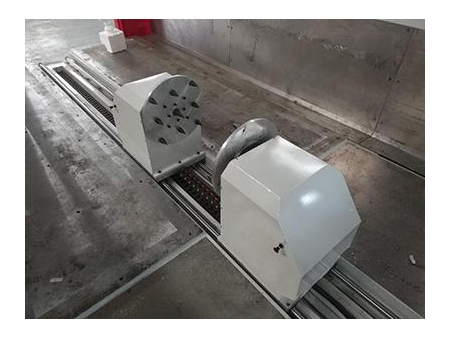

- Steel table and rotary axis
Parameters
| Model | SF2040-3S | SF2540-3S | SF3050-3S | SF4060-3S |
| XY-axis stroke | 2000x4000mm | 2500x4000mm | 3000x5000mm | 4000x6000mm |
| Z-axis stroke | 800mm, 1000mm, 1200mm, 1500mm (Optional) | |||
| Max. feed rate | X-axis: 35m/min, Y-axis: 35m/min, Z-axis:9m/min | |||
| Positioning accuracy | ±0.08mm | |||
| Processing speed | 0-20mm/min | |||
| Voltage, pressure | Voltage AC 380V/50HZ Cylinder pressure ≥6.5Kgf/cm² | |||
| Weights | 6000kg | |||
| Package dimensions | 4700x2280x2300mm | |||
