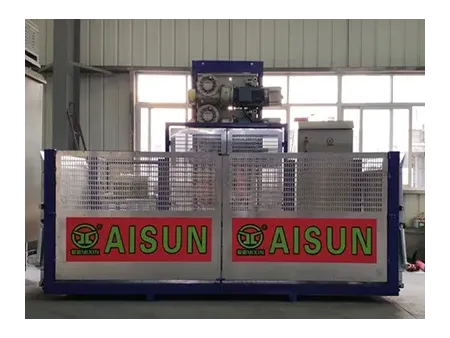

Material Hoist

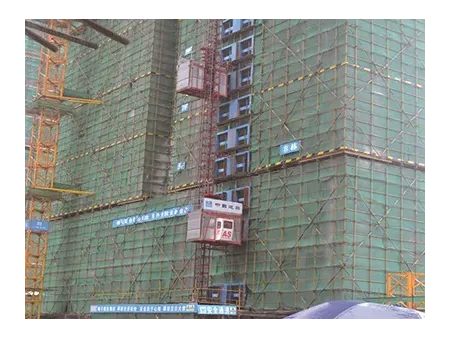

Explore the SCH Material Hoist, designed to improve your building process. Quickly moving supplies from ground level to assigned floors transforms your site's efficiency. Minimizing the usage of temporary constructions like scaffolding not only saves money but also improves safety by lowering on-site dangers.
Designed to fit your particular requirements and with optional durable hot-dip galvanized tower sections. Built of high-strength steel and closely following national safety guidelines, it guarantees both peace of mind and quality. Using the SCH Material Hoist will increase your construction safety and efficiency.
| Model | | | |
| Max. Lifting Height (m) | 150 | 150 | 150 |
| Rated Payload Capacity (kg) | 2×1000 | 2×2300 | 2×3200 |
| Rated Load Capacity During Section Assembly (kg) | 2×1000 | 2×1000 | 2×1000 |
| Rated Lifting Speed (m/min) | 0～28 | 0～28 | 0～46 |
| Cage Size (L×W×H) (m) | 3.2×1.5×2.3 | 3.2×1.5×2.3 | 3.2×1.5×2.3 |
| Motor Power (kW) | 2×1×11/18.5 (50/87HZ) | 2×2×11/18.5 (50/87HZ) | 2×3×18.5/31 (50/87HZ) |
| Mast Section Size (L×W×H) (mm) | 650×650×1508 | 650×650×1508 | 650×650×1508 |
| Hoist Electrification | Cable trolley, cable reel | Cable trolley, cable reel | Cable trolley, cable reel |
| Safety Device | SAJ30-1.2A (0.75m/s) | SAJ50-1.2A (0.75m/s) | SAJ60-1.2A (1.05m/s) |
| Power Supply | 380V(±10%)/50HZ | 380V(±10%)/50HZ | 380V(±10%)/50HZ |
-

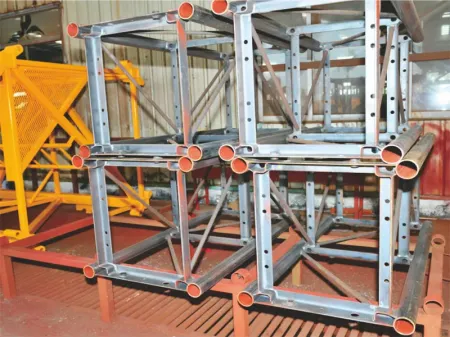

Enhance the dependability of construction by utilizing our tower section's main chord made from top-notch, high-strength steel provided by Shanghai Baosteel. Our hoist is fortified with a distinctive inner hole wall spray painting process, guaranteeing long-lasting durability and optimal performance even in challenging conditions.
-

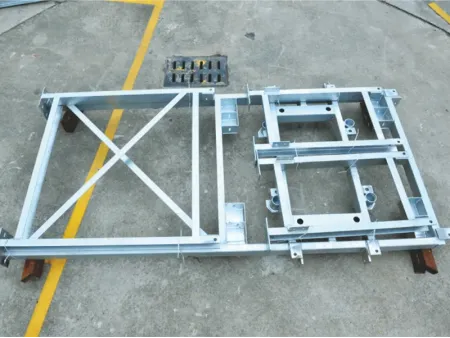

With our unique split-type underframe and pin connections, experience dependability and economy. Reliable performance of fast assembly and great rigidity makes transportation easy, so optimizing your project schedule.
-

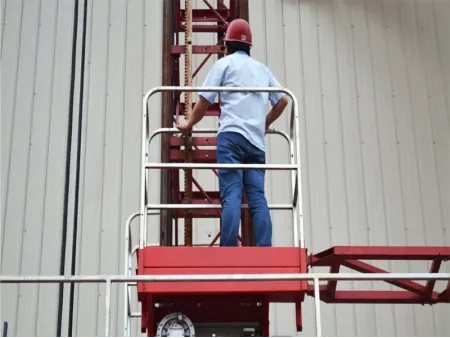

Our specialized maintenance platform is meant to keep your team safe while they do maintenance work. Our strong Material Hoist solution will improve operational safety and effectiveness.
-

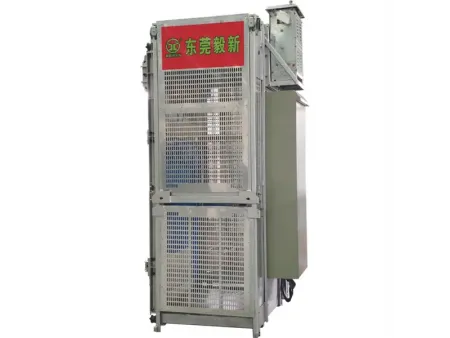

Enclosed Cage
-

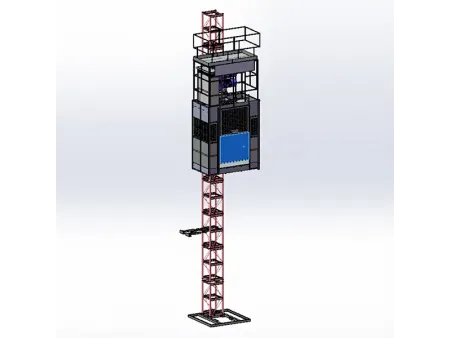

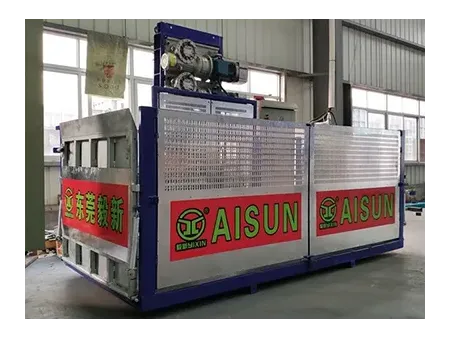

Hoist Cage
-

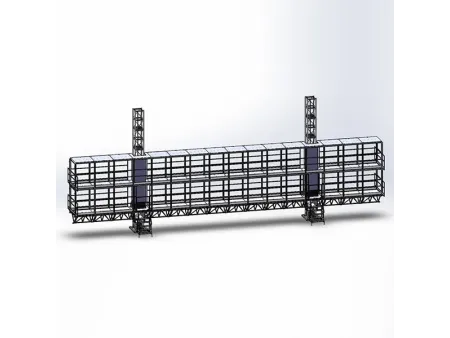

Mast Climbing Work Platform
