Smart Control Construction Hoist
Ultimate Solution for Efficient Vertical Transportation
Our SCG Smart Control Construction Hoist is meant to transform your handling of vertical mobility on building sites. Your staff can convey signals with this innovative hoist by simply using floor buttons or cabin selectors; the hoist will instantly react and gently stop at the specified floor. It's rather handy for your staff to move in and out since the doors even open and close on their own.
This is about changing your workflow rather than only convenience. Automating these tasks helps the SCG hoist cut operating expenses and labor requirements while simultaneously increasing the effectiveness of your project. High safety standards and environmentally sustainable operations can help you to feel good about the effects on your bottom line and the surroundings.
Designed using strict national safety criteria and high-strength steel, the SCG Smart Control Construction Hoist is a game-changer for contemporary building rather than only a tool. Take your project to the next level with the dependability and creativity you desire!
| Model | | | | |
| Max. Lifting Height (m) | 550 | |||
| Rated Payload Capacity (kg) | 2×2000 | |||
| Rated Load Capacity During Section Assembly (kg) | 2×1000 | |||
| Rated Lifting Speed (m/min) | 0～46 | 0～96 | 0～55 | 0～63 |
| Cage Size (L×W×H) (m) | 3.2×1.5×2.3 | |||
| Motor Power (kW) | 2×2×11/18.5 (50/87HZ) | 2×3×18.5/31 (50/87HZ) | 2×2×13/22 (50/87HZ) | 2×3×11/18.5 (50/87HZ) |
| Mast Section Size (L×W×H) (mm) | 650×650×1508 | |||
| Hoist Electrification | Cable trolley, cable festoon system | |||
| Safety Device | SAJ40-1.2A (0.95m/s) | SAJ60-2.0 (1.95m/s) | SAJ50-1.4 (1.25m/s) | SAJ50-1.4 (1.35m/s) |
| Power Supply | 380V(±10%)/50HZ | |||
-

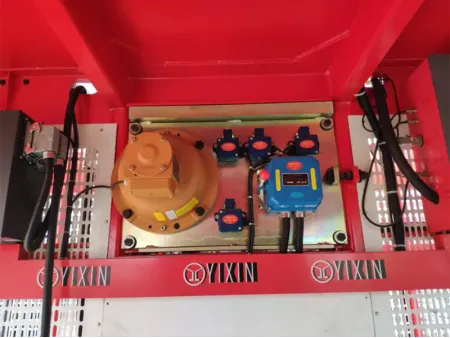

Split Electrical Control System
Aviation sockets are used in the cabin's electrical control system, therefore saving further wiring requirements. This design, with choices for several smart features, streamlines installation and maintenance.
-

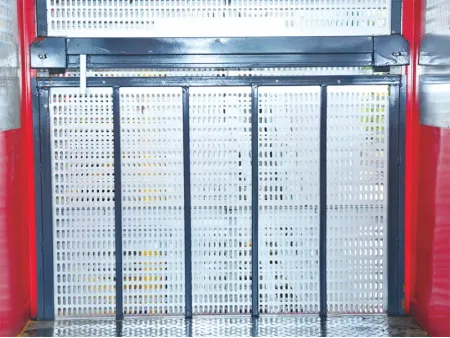

Dual-Door Safety
Designed to prevent collisions with site carts and other equipment, the hoist cabin boasts a lower door with dual-door safety capability.
-

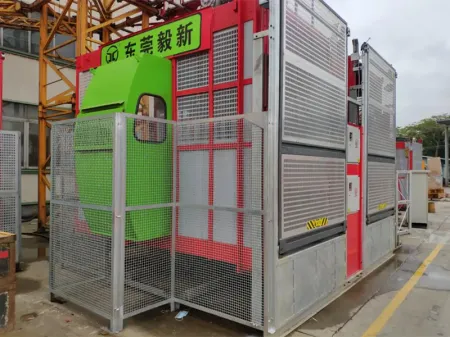

Base Enclosure
The base enclosure construction consists of a strong, aesthetically beautiful steel wire mesh fence. Excellent corrosion resistance comes from the hot-dip galvanized material used around the periphery.
-
Openable Cabin Doors
Three openable doors on the hoist cabin give easy access from all sides.
-

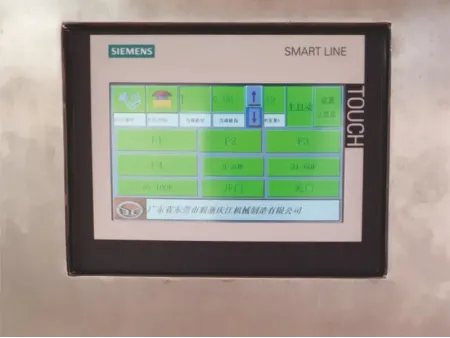

Panel for Touchscreen Control
A touchscreen display on the control panel indicates the operational state of the elevator together with any defect information. By means of the panel, maintenance staff can quickly spot and fix problems.
