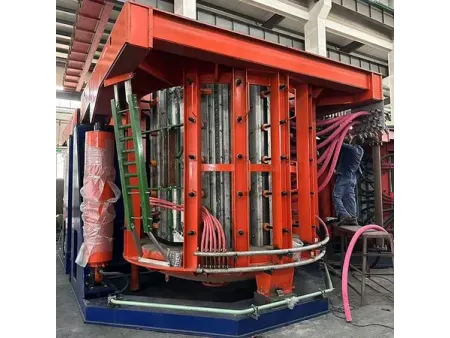

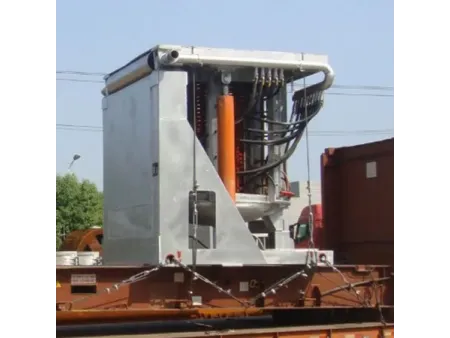

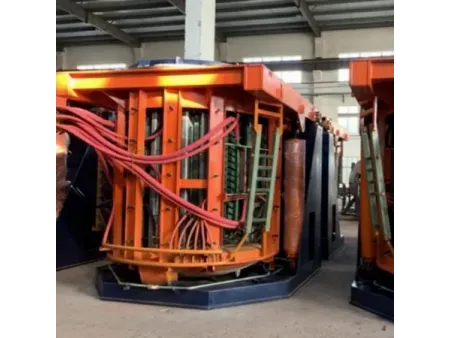

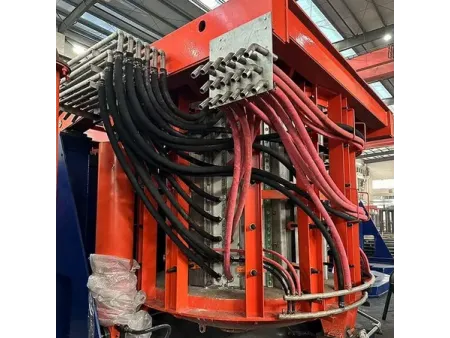

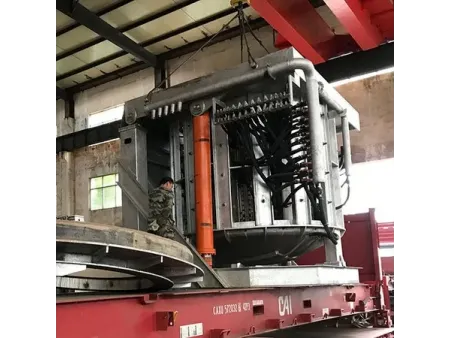

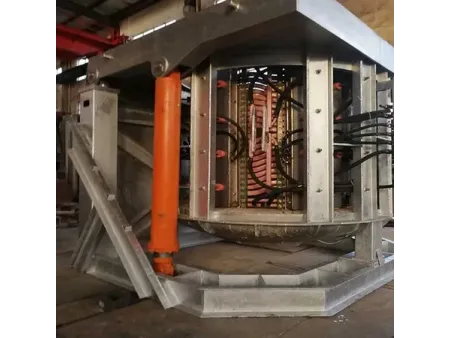

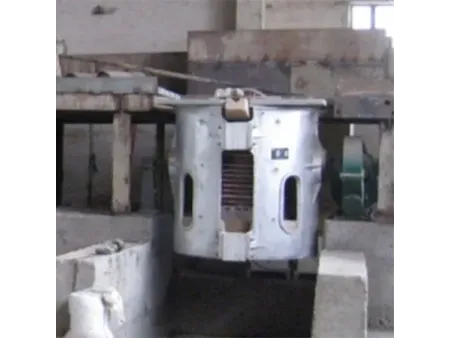

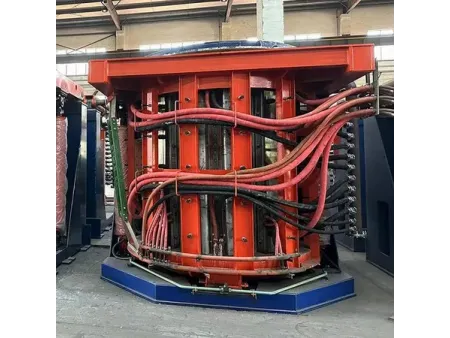

Our medium-frequency induction furnaces, made up of the frequency device, furnace body and stokehole control system, convert electrical energy into heat through medium-frequency electromagnetic induction to heat molten iron and steel. Featuring fast heating and high efficiency, they work together with continuous casting machine and rolling machine, and mainly used to produce billets, rebar, angle iron, H-shaped steel, I-shaped steel as well as other steel products.
Medium-Frequency Induction Furnace
Request a Quote
- Rated capacity: 1-5ton, 5-30ton, 30-100ton
- Input voltage: 1000-1950V
- Rated power: 1000-45000kW
- Working frequency: 120-1000Hz
- Melting rate: 1-50ton/hours
- Rated capacity: 3ton
- Max. load capacity: 4ton
- Rated power: 2500kW
- Working frequency: 500Hz
- Melting rate: 2.8ton/hours
- Rated capacity: 8ton
- Max. load capacity: 10ton
- Rated power: 5000kW
- Working frequency: 500Hz
- Melting rate: 7-8ton/hours
- Rated capacity: 15ton
- Max. load capacity: 18ton
- Rated power: 10000kW
- Working frequency: 500Hz
- Melting rate: 14-15ton/hours
- Rated capacity: 30ton
- Max. load capacity: 36ton
- Rated power: 16000kW
- Working frequency: 150-200Hz
- Melting rate: 20-23ton/hours
- Rated capacity: 40ton
- Max. load capacity: 50ton
- Rated power: 18000kW
- Working frequency: 150Hz
- Melting rate: 27-29ton/hours
- Rated capacity: 50ton
- Max. load capacity: 60ton
- Rated power: 15000-26000kW
- Working frequency: 150Hz
- Melting rate: 40ton/hours
- Rated capacity: 90ton
- Max. load capacity: 100ton
- Rated power: 25000-45000kW
- Working frequency: 135Hz
- Melting rate: 60ton/hours
Features
- Our medium-frequency induction furnace utilizes the KGPS and IGBT frequency power supply, and the single or dual track power supply technologies, with the whole operation monitored by PLC.
- As mentioned in the working principle, our medium-frequency induction furnace learns from the electromagnetic induction theory to heat materials. Since the heat comes from its own work pieces, our furnace presents fast heating, less oxidization, and high heating efficiency. Meanwhile, metal materials can be uniformly heated, thus ensuring small temperature difference between core tables. The temperature can be precisely controlled by the temperature controlling system, thus guaranteeing the repeat accuracy of our product. If the mental surface decolorizes, yet it can easily recover the brightness through polishing.
- Owing to the high heating efficiency, our medium-frequency induction furnace consumes less power and rarely exerts impacts on the environment.
- This product features high degree of atomization, which makes great contribution to the improvement of productivity.
- Furthermore, each furnace body, designed with quick-change connectors of water and electrical systems, can be conveniently and fast changed to suit different specifications of the work pieces.
- The whole set of our medium-frequency induction furnace has a sound protective system. Its starting-up system enables the furnace to be stably started even in the cases of overvoltage, over-current, or lack of phase.
