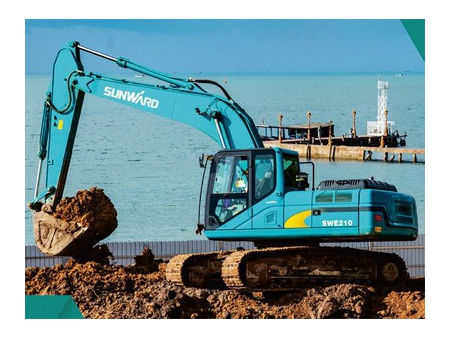

Medium Excavator SWE210

Operating weight: 21.3t
Standard bucket capacity: 1m³
Rated power: 110kW/2100rpm

ISUZU high power engine, providing high reliability and dependability;

Configured with imported hydraulic parts, ensuring high efficiency and work hours per day;

Robust undercarriage with track of high load-carrying capacity;

Less fuel consumption, low emission level, high economy and easy maintenance;

Technical Specifications

Operating weight		t	21.3
Bucket capacity		m³	1
Engine	Brand		ISUZU
	Model		6BGITRP-03
	Type		6-cylinder, 4-stroke, water-cooled
	Power	kW/rpm	110/2100
	Max. torque	N.m/rpm	658/1200
	Displacement	L	6.494
Hydraulic system	Type of main pump		2 variable displacement piston pumps
	Max. flow of main pump	L/min	2×234
	System pressure	MPa	32.4/34.3
	Type of pilot pump		1 gear pump
	Max. flow of pilot pump	L/min	21
	Pressure of pilot pump	MPa	3.9
Performance	Slewing speed	rpm	11.8
	Travel speed	km/h	4.9/3.1
	Gradeability	°	35
	Track width	mm	600
	Ground pressure	kPa	43.2
Tank volume	Fuel tank volume	L	370
Tank volume	Hydraulic oil tank volume	L	250

Working Range & Digging Force

a	Max. digging height	mm	9750
b	Max. dumping height	mm	6980
c	Max. digging depth	mm	6750
d	Digging depth (2.44m, horizontal)	mm	6560
e	Max. vertical digging depth	mm	5900
f	Max. digging reach	mm	9940
9	Max. digging reach at ground level	mm	9775
h	Min. front swing radius	mm	3560
Digging force of bucket (ISO supercharging)		kN	155
Digging force of arm (ISO supercharging)		kN	110

Statement of technical specification: all parameters above are subject to change due to the continuous improvement of the product, please to get the latest info updates.
