HYPERBARIC OXYGEN THERAPY (HBOT)
Hyperbaric chamber for providing pure oxygen at pressure up to 1.90ATA for single-person therapy
- Maximum allowable working pressure (MAWP)90kPa (1.9ATA)
- Capacity1 person

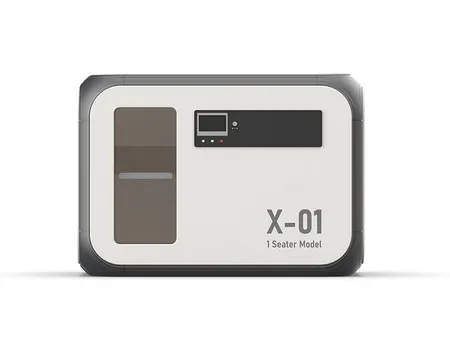

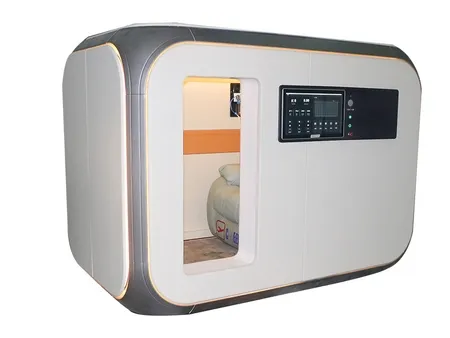

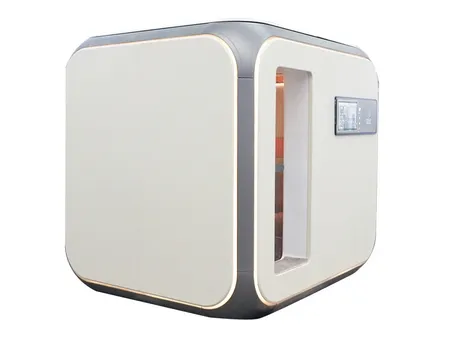

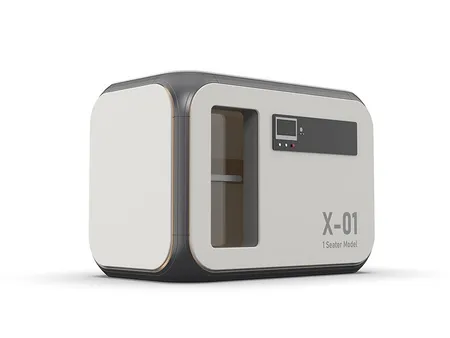

Monoplace Moderate Hyperbaric Oxygen Chamber
Request a Quote
Monoplace moderate hyperbaric oxygen chambers offer deeper therapeutic benefits than mild-pressure models while remaining more accessible than traditional high-pressure medical units. Operating between 1.1 and 1.9ATA (adjustable), these hyperbaric therapy chambers increase dissolved oxygen levels in the bloodstream, helping address tissue hypoxia, reduce inflammation, and accelerate recovery in cases such as post-surgical healing, carbon monoxide poisoning, and sudden hearing loss.
Each hyperbaric chamber includes automated pressure regulation, real-time oxygen monitoring, and dual safety features such as emergency decompression valves, reducing the risk of oxygen toxicity or barotrauma while minimizing reliance on continuous clinical supervision. Unlike multiplace designs, monoplace chambers support individualized therapy settings without cross-interference, making them ideal for users requiring more focused, high-intensity, or private treatment sessions. These chambers also show potential in emerging areas such as neuro-rehabilitation and anti-aging therapy, bridging the space between medical intervention and long-term health management.
Specifications
| Chamber dimensions (L×W×H) | 2360×1400×1700mm |
| Maximum allowable working pressure (MAWP) | 90kPa (1.9ATA) |
| Material | Aluminum alloy |
| Pressure solutions | 4 sets |
| Treatment time | 45min to 90min for your choice |
| Oxygen concentrator flow rate | 10L/min |
| Internal oxygen concentration rate | ≤23% |
| Oxygen concentration rate (oxygen generator) | 93%±3% |
| Location of PLC control | Inside and outside |
| Emergency stop/pressure relief valve | Inside and outside |
| Air conditioner | Equipped |
| Intercom | Equipped |
| Music player | Equipped |

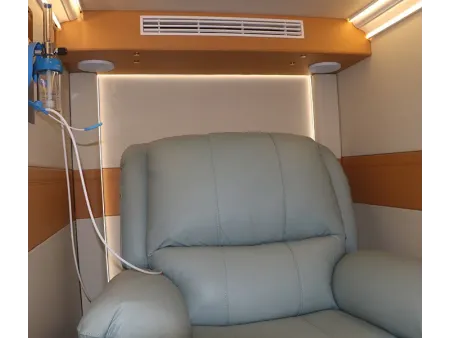

| Chair type | Electric recliner sofa |
