PVC Electrical Insulation Tape
Request a Quote
Polyvinyl chloride adhesive tape
PVC electrical insulation tapes, also known as PVC insulation tapes, are polyvinyl chloride films coated with rubber-based pressure-sensitive adhesives.
Specifications
- Operating temperature: 80℃ (176℉)

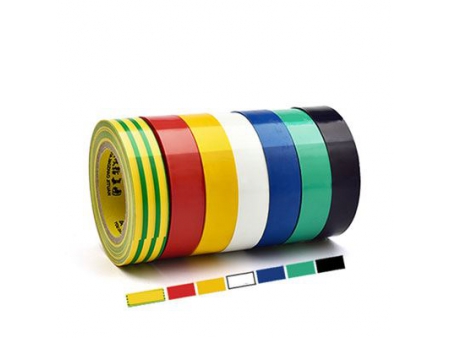

- Color: Red/yellow/green/blue/white/black
- Tape thickness: 130μm/150μm
- Tape width: 16mm/18mm/20mm, specific width can be customized
- Tape length: 6.5m/13m
- Elongation: 150%
- Breakage strength: 141bs/in
- Adhesion to steel: 18oz./in
- Adhesion to backing: 18oz./in
Electrical Properties
| Voltage | Up to 600V |
| Dielectric strength | >39.37kv/mm(1000v/mil) |
| Insulation resistance | >1012Ω |
Details

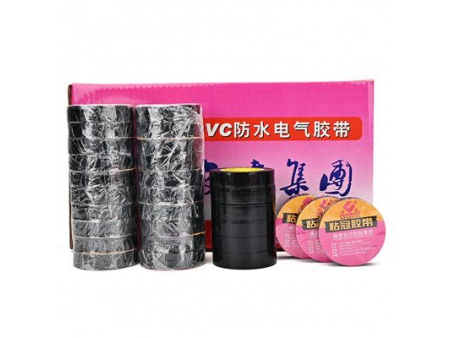

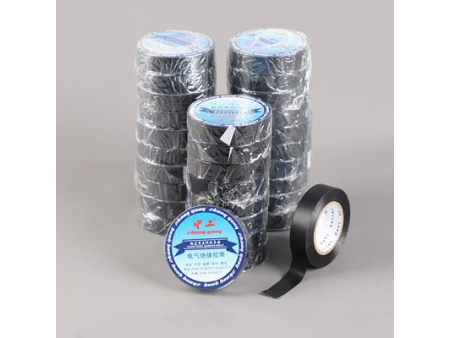

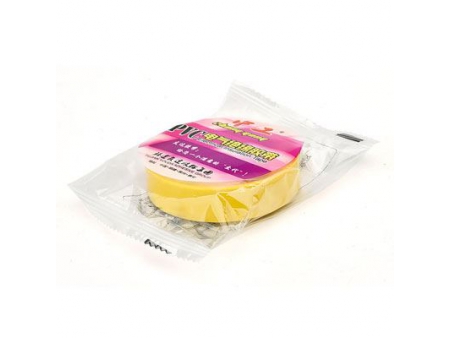

Packaging of PVC Electrical Insulation Tape
Features
- Strong insulation;
- Excellent sticking performance;
- Flame retardant;
- Water-proof;
- Heat resistance
Applications of PVC Electrical Insulation Tape

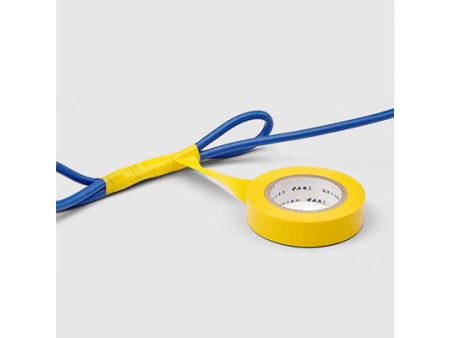

- Household electric wires;
- Electric equipment;
- Outdoor cables;
- Automotive wires
