CNC Double End Tenoner
CNC2X-2200-2S

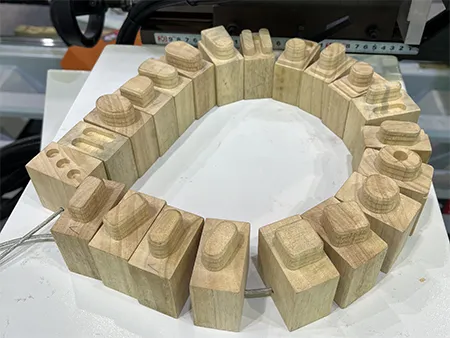

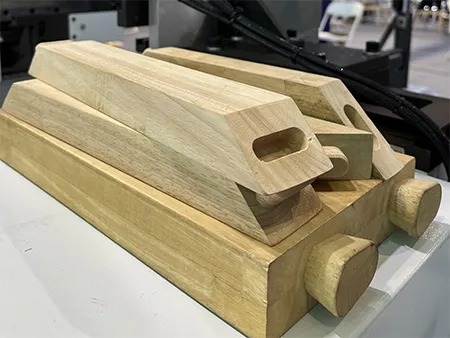

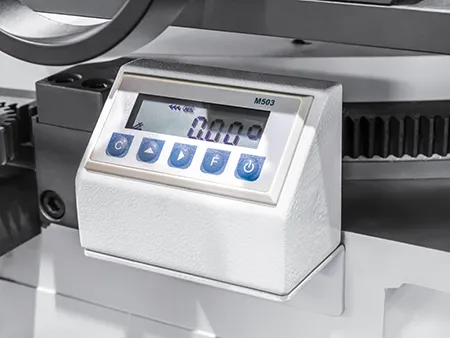

Producing mortise and tenon joints with speed and precision is essential in the woodworking industry, especially for manufacturers dealing with solid wood furniture like tables and chairs. The CNC double end tenoner handles this task efficiently by working on both ends of the material at once. It offers the flexibility to process pieces with uniform or varying dimensions, making it a versatile tool for high-volume production. Featuring automatic feeding and discharge, it reduces manual handling and boosts overall productivity, while the magnetic scale and servo-driven screw feed ensure perfect alignment and accuracy throughout each stage.

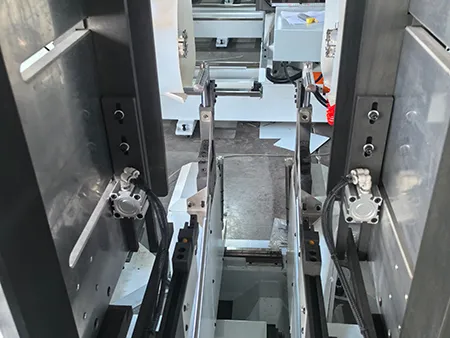

- Uses a warehouse-style design that allows for continuous automatic feeding and discharge, minimizing the time spent on manual material handling.

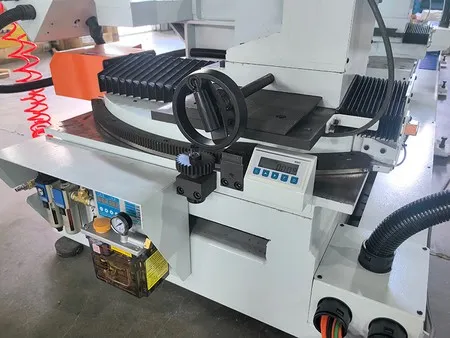

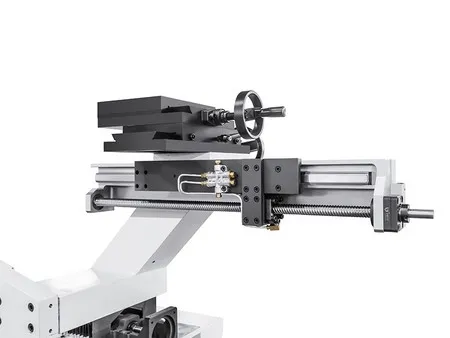

- High-precision dual worktables enable simultaneous processing of both ends, ensuring accurate joint creation with minimal margin for error.

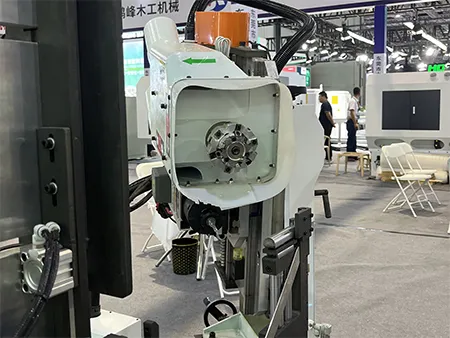

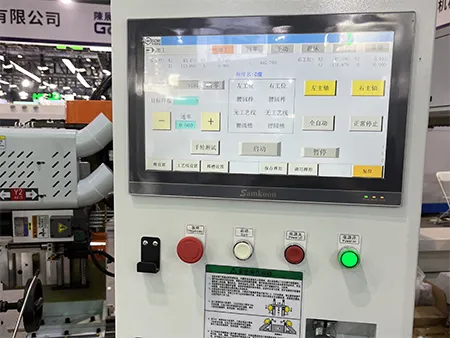

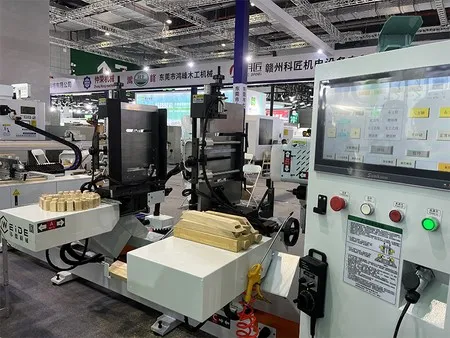

- The intuitive touch screen interface simplifies operation, allowing users to input different joint designs with ease, making the system both easy to learn and highly adaptable.
- Automatic infeed and outfeed cycles support continuous production, seamlessly integrating into existing production lines to maximize efficiency.

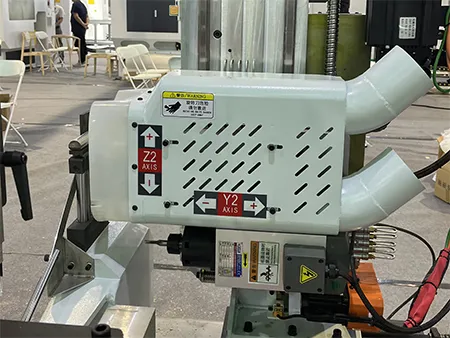

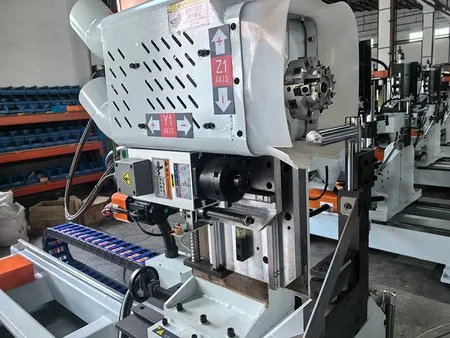

- Built with durability and stability in mind, the system’s robust mechanical structure ensures long-term reliable performance, even under intensive use.
| Workpiece size | 2200×230×80mm |
| Length between tenons | 110-2200mm |
| Working width | 0-220mm |
| Working thickness | 0-80mm |
| Working length | 0-40mm |
| Horizontal angle | -30°, 20° |
| Vertical angle | -13°, 45° |
| Working pressure | 0.5-0.7MPa |
| Voltage | 380V |
| Spindle speed | 12000r/min |
| Total power | 13.25kW |
| Spindle power | 3.7kW×2 |
| A-axis/B-axis motor power | 0.4kW×2 |
| X1-axis/X2-axis motor power | 1.3kW×2 |
| Z1-axis/Z2-axis motor power | 0.85kW×2 |
| C-axis motor power | 0.75kW×1 |
| Dimensions (L×W×L) | 4300×2000×1600mm |
| Weight | 2000kg |
Note:
When set at a vertical angle of 45°, CNC double end tenoners can process workpieces with a material thickness of 30mm, a maximum length of 490mm, and a minimum length of 430mm. For materials with a thickness of 80mm, the maximum length is 590mm and the minimum length remains 430mm.
