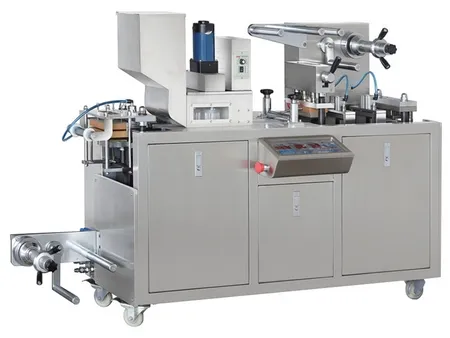

DPP80

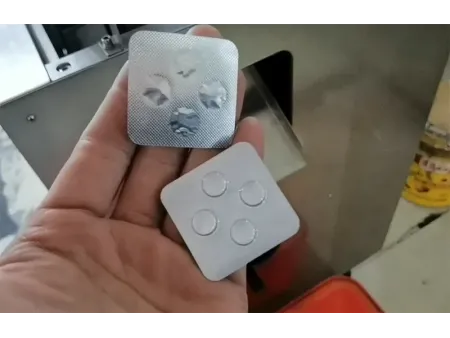

Blistering machine for Alu-Alu and Alu-PVC blister packs

1,200 Blisters Per Minute
(Alu-Alu 80×57mm)
2,400 Blisters Per Minute
(Alu-PVC 80×57mm)

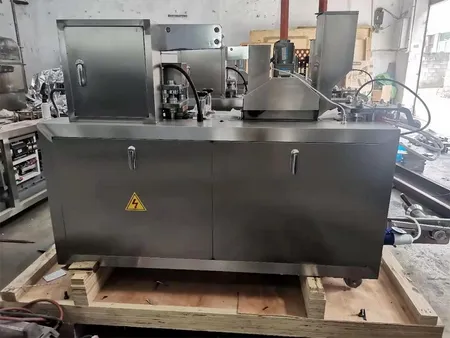

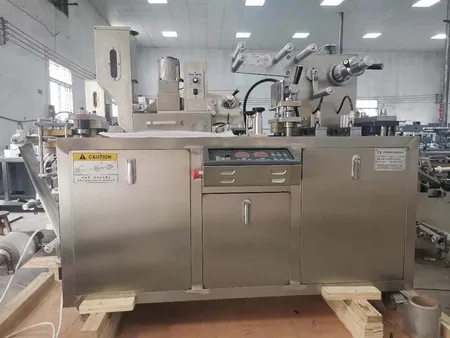

This automatic blister packaging machine features an innovative flat-plate design that combines pressing, forming, and mesh heat sealing for simple and flexible operation. Its compact size makes it suitable for small-scale pharmaceutical plants, hospital preparation rooms, and laboratories. It is versatile, capable of handling Alu-Alu, Alu-PVC, and aluminum-plastic packaging for capsules, tablets, candies, health supplements, and even small hardware items.

Applications

This blister packaging machine is ideal for packaging capsules, tablets, and candies, as well as handling liquids (ointments), pastes, and irregularly shaped products like syringes. It is widely used in the pharmaceutical, health supplement, food, cosmetic, and medical device industries, catering to diverse market demands.

Key features

Equipped with an adjustable mechanical arm, supporting blister packaging for various sizes and shapes to meet different product requirements
Fully automated system performs feeding, forming, heat sealing, embossing, batch number printing, and cutting continuously, improving efficiency and reducing labor costs
Innovative design of flat-plate structure allows easy packaging of uniquely shaped products, such as oval, square, or triangular items, enhancing packaging versatility.

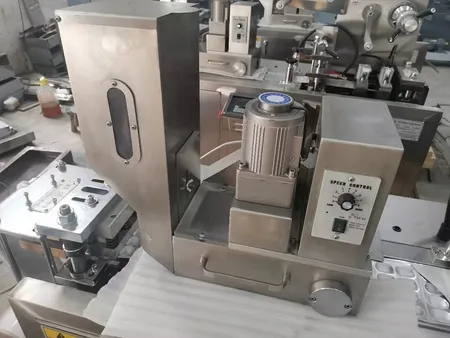

Compact design with a frequency converter for intuitive operation, ensuring ease of use.
Optional eye-mark sealing (registration mark) system with sensors ensures accurate and reliable packaging.

Specifications

Cutting Frequency	Alu-Alu: 6-20 cycles/min Alu-PVC: 20-40 cycles/min
Max. Production Capacity	Alu-Alu: 1,200 blisters/h (based on standard plate size 80×57mm) Alu-PVC: 2,400 blisters/h (based on standard plate size 80×57mm)
Max. Forming Area & Depth	Alu-Alu: 70×90×14mm Alu-PVC: 70×110×26mm (standard 70×90×14mm)
Stroke Length	20-100mm (customizable)
Air Pressure	0.4-0.6MPa
Standard Plate Size (L×W)	80×57mm (customizable)
Total Power	380V/220V 50Hz 1.8kW
Main Motor Power	0.75kW
PVC Sheet (T×W)	0.15-0.5×100mm
PTP Aluminum Foil (T×W)	0.02-0.035×100mm
Dialysis Paper	50-100g×100mm
Machine Dimensions (L×W×H)	1400×460×950mm
Machine Weight	450 kg
