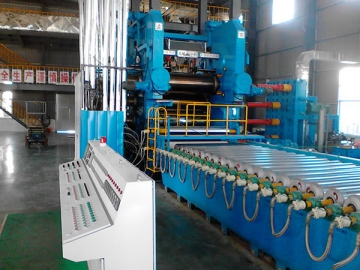

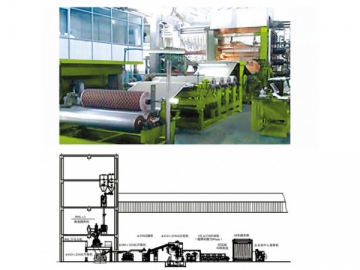

PVC Synthetic Leather Calendering Line
Request a Quote
View All: http://huahanmachine.com
Specifications
Model Item | ||||||
Φ305x900 L5 | Φ410x1220 L5 | Φ410x1220 Ґ4 | Φ450x1300 L5 | Φ450"x1300 Ґ4 | Φ510x1600 Ґ4 | |
Roller Size | Φ305x900 | Φ410x1200 | Φ410x1200 | Φ450x1300 | Φ450"x1300 | Φ510x1600 |
Roller Arrangement | L pattern | L pattern | Ґ pattern | L pattern | Ґ pattern | Ґ pattern |
Production Rate (m/min) | 6~40 | 6~40 | 6~40 | 6~40 | 6~40 | 6~40 |
Leather Thickness ( mm) | 0.07~0.7 | 0.07~0.7 | 0.05~0.7 | 0.07~0.7 | 0.05~0.7 | 0.05~0.7 |
Leather Width (mm) | 700 | 1,000 | 1,000 | 1,000 | 1,000 | 1,300 |
Motor Power (kw)/ Number of Motor | 15/5 | 22/5 | 22/2 15/2 | 30/5 | 30/2 22/2 | 22/2 15/2 |
Model Item | ||||||
Φ560x1675 Ґ4 | Φ560x1675 L5 | Φ610x2030 Ґ4 | Φ610x1830 L5 | Φ610"x1830 Ґ 5 | Φ660x2300 Ґ4 | |
Roller Size | Φ560x1680 | Φ560x1680 | Φ610x2030 | Φ610x1830 | Φ610"x1830 | Φ660x2300 |
Roller Arrangement | Ґ pattern | L pattern | Ґ pattern | L pattern | Ґ pattern | Ґ pattern |
Production Rate (m/min) | 6~60 | 6~60 | 6~60 | 6~60 | 6~60 | 6~60 |
Leather Thickness ( mm) | 0.05~0.7 | 0.07~0.7 | 0.07~0.7 | 0.05~0.8 | 0.07~0.7 | 0.05~0.7 |
Leather Width (mm) | 1,350 | 1,350 | 1,830 | 1,500 | 1,500 | 1,850 |
Motor Power (kw)/ Number of Motor | 55/2 37/2 | 75/3 55/2 | 75/2 55/2 | 75/2 90/3 | 75/2 90/3 | 75/2 90/2 |
Model Item | ||||||
Φ660x2030 Ґ 5 | Φ660x2030 L5 | Φ710x2550 Ґ4 | Φ710x2550 Ґ 5 | Φ710"x2550L 5 | Φ760x2600 Ґ4 | |
Roller Size | Φ660x2030 | Φ660x2030 | Φ710x2550 | Φ710x2550 | Φ710"x2550 | Φ760x2600 |
Roller Arrangement | Ґ pattern | L pattern | Ґ pattern | Ґ pattern | L pattern | Ґ pattern |
Production Rate (m/min) | 6~60 | 6~60 | 6~60 | 6~60 | 6~60 | 6~60 |
Leather Thickness ( mm) | 0.05~0.7 | 0.07~0.7 | 0.05~0.7 | 0.07~0.8 | 0.07~0.7 | 0.05~0.7 |
Leather Width (mm) | 1,600 | 1,600 | 2,050 | 2,050 | 2,050 | 2,200 |
Motor Power (kw)/ Number of Motor | 75/2 110/3 | 75/3 110/3 | 90/2 110/2 | 90/2 110/3 | 90/2 110/3 | 132/2 90/2 |
Model Item | ||||||
Φ760x2600 Ґ 5 | Φ810x2800 Ґ4 | Φ860x4050 Ґ4 | Φ585" ×Φ660"x1850" Ґ 7 | |||
Roller Size | Φ760x2600 | Φ810x2800 | Φ860x4050 | Φ585" ×Φ660"x1850" | ||
Roller Arrangement | Ґ pattern | Ґ pattern | Ґ pattern | Ґ pattern | ||
Production Rate (m/min) | 6~60 | 6~60 | 6~60 | 6~60 | ||
Leather Thickness ( mm) | 0.07~0.7 | 0.05~0.7 | 0.05~0.7 | 0.07~0.8 | ||
Leather Width (mm) | 2,200 | 2,250 | 3,250 | 1,550 | ||
Motor Power (kw)/ Number of Motor | 132/3 90/2 | 132/2 110/2 | 132/2 185/2 | 90/2 75/5 |
