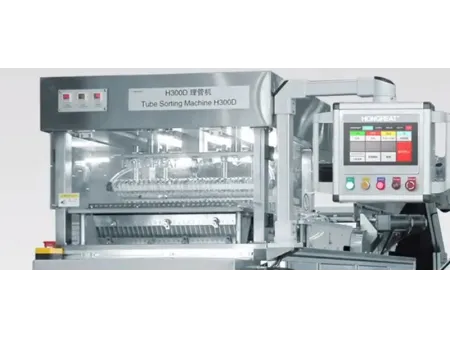

Test Tube Sorting Machine
Request a Quote
12,000-15,000 pcs/h
Sorting machine for management of PET & PP test tubes
- Production capacity 12,000-15,000 pcs/h
- Tube size Ø13×75mm, Ø13×100mm, Ø16×100mm
(available in PET, PP, glass) - Tube material PET / PP
Our test tube sorting machine is a comprehensive solution for organizing PET and PP test tubes after injection molding. Offering three adaptable sorting methods: into boxes, direct labeling, or loading into tube jigs; it enhances production efficiency and reduces labor costs. The sorting machine integrates advanced technology to automate the entire process, from tube collection to sorting and packing, ensuring streamlined operations for large-scale production environments.
Work Flow
- Manually load tubes into the storage tank

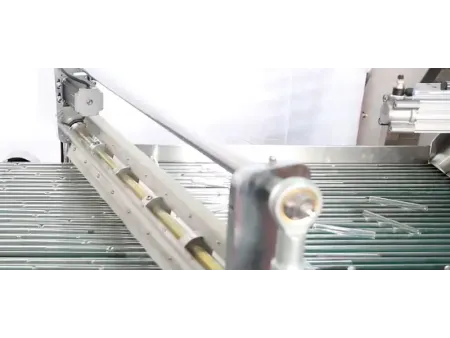

- Tubes are automatically lifted and transferred to the sorting station
- Tube sorting
- Box loading, labeling, or tube jigs loading
- Heat-shrink packaging
- Final boxing
- Completion.
Technical Specifications
- Production capacity: 12,000-15,000 pcs/h
- Tube size: Ø13×75mm, Ø13×100mm, Ø16×100mm (for one size only)
- Tube material: PET / PP
- Power: AC 380V / 4kW
- Air pressure: 0.5Mpa≤P≤1Mpa
- Overall dimensions: 3000×4670×1750mm
- Weight: approx. 800kg
Configuration
- Storage tank: Holds unsorted tubes in bulk
- Tube feeding station: Aligns and transports tubes for further processing
- Sorting station: Organizes tubes by ensuring consistent orientation
- Box loading station: After the test tubes are sorted and aligned, they are layered into vertically adjustable storage boxes. Once the required number of tubes is reached, the box is transferred to the manual film-wrapping station for further processing
- Manual heat-shrink packaging station: Prepares tubes for final packaging and shipment
