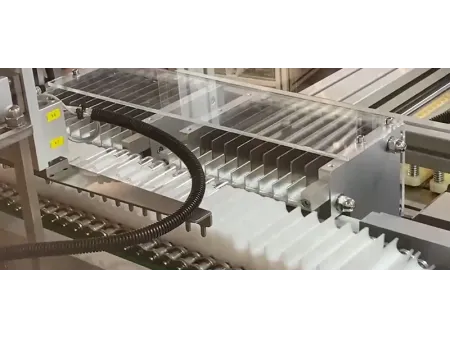

Automatic Test Tube Loading Machine
Request a Quote
15,000 - 18,000 pcs/h
Automatic loader for bulk loading of PET & PP test tubes into tube racks
- Production capacity 15,000 - 18,000 pcs/h
- Tube size Ø13×75mm;13×100mm
- Material of machine frame Aluminum alloy
Features
- Efficiently handles the task of loading test tubes into racks, ensuring smooth and continuous operation
- Capable of loading 200 tubes per cycle without interruptions
- Ergonomic design reduces worker strain and enhances productivity
- Modular construction allows it to be integrated with other automated systems, creating a fully automated production line.
Technical Specifications
| Production capacity | 15,000 - 18,000 pcs/h | Jig motion mode | Fully automatic |
| Tube size | Ø13×75mm;13×100mm | Control system | PLC |
| Air consumption | 0.3m³/min | Air pressure | 0.4Kpa≤P≤0.7Kpa |
| Material of machine frame | Aluminum alloy | Power | 1kW/AC380V/AC220V |
| Overall dimensions (L×W×H) | 2000×1100×1750mm | Weight | 650kg |
