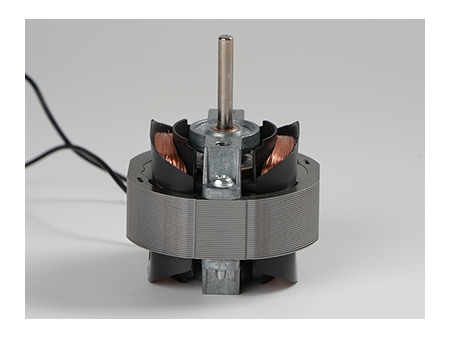

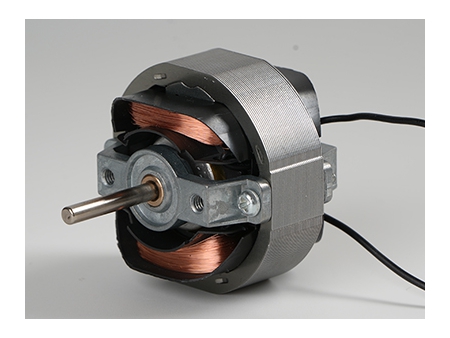

YJ 52 O-Frame Shaded Pole Motor
Request a Quote
YJ 52 O-frame shaded pole motor is a 2 pole 2 speed motor that will run on 12V AC, 100-120V AC, 220-240V AC or 127/230V AC. It can be used in ventilation systems such as ventilating fans and exhaust fans.
We also offer custom services like motor design and construction, optional configuration and logo printing.
Diagram
Certifications
Application
YJ52 shaded pole motor is suitable for many small appliances, such as heater fan, exhaust fan, air purifier, hand dryer, humidifier, mosquito zapper, etc.
Parameters
Type | Voltage/Freq. VAC | Current A | Power W | Speed r/min | Rotation | Shaft dia mm | Stator Thickness (T) mm | Shaft Extension (B) mm |
220-240V 50Hz | ≤0.20 | ≤18 | ≤2800 | CW/CCW | 4 | 16 | < 68 | |
110-120V 60Hz | ≤0.40 | ≤18 | ≤3450 | |||||
230/127V 50/60Hz | ≤0.40 | ≤18 | ≤3450 | |||||
12V 50Hz | ≤2.00 | ≤18 | ≤2800 | |||||
220-240V 50Hz | ≤0.22 | ≤20 | ≤2850 | CW/CCW | 4 | 20 | < 68 | |
110-120V 60Hz | ≤0.44 | ≤20 | ≤3500 | |||||
230/127V 50/60Hz | ≤0.44 | ≤20 | ≤3500 | |||||
12V 50Hz | ≤2.20 | ≤20 | ≤2850 | |||||
220-240V 50Hz | ≤0.24 | ≤25 | ≤2900 | CW/CCW | 4 | 25 | < 68 | |
110-120V 60Hz | ≤0.48 | ≤25 | ≤3550 | |||||
230/127V 50/60Hz | ≤0.48 | ≤25 | ≤3550 | |||||
12V 50Hz | ≤2.40 | ≤25 | ≤2900 | |||||
220-240V 50Hz | ≤0.26 | ≤30 | ≤2950 | CW/CCW | 4 | 30 | < 68 | |
110-120V 60Hz | ≤0.52 | ≤30 | ≤3580 | |||||
230/127V 50/60Hz | ≤0.52 | ≤30 | ≤3580 | |||||
12V 50Hz | ≤2.60 | ≤30 | ≤2950 |
