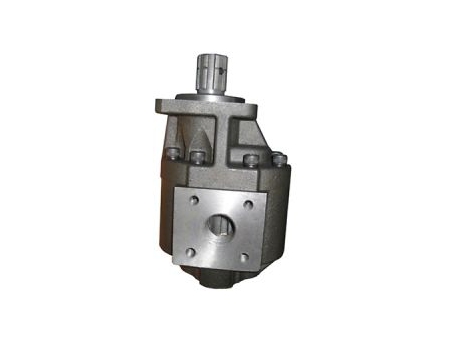

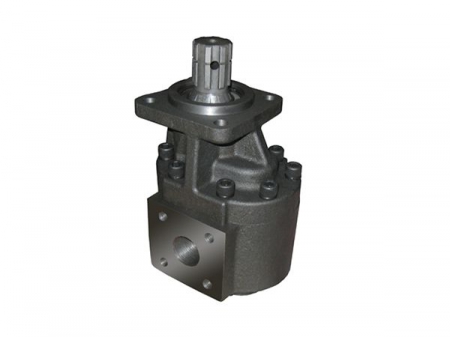

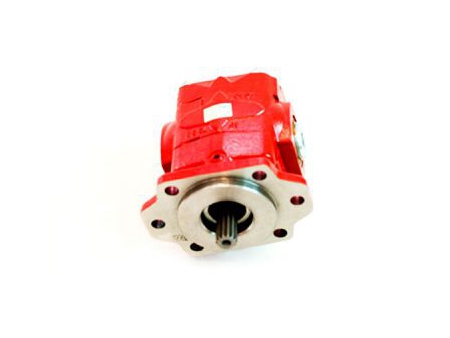

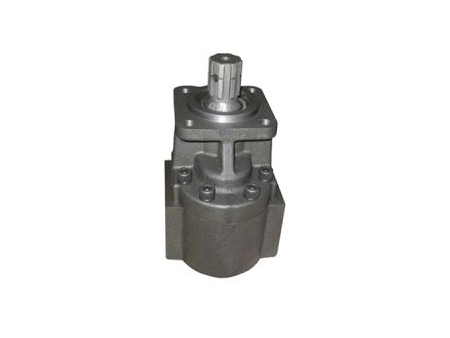

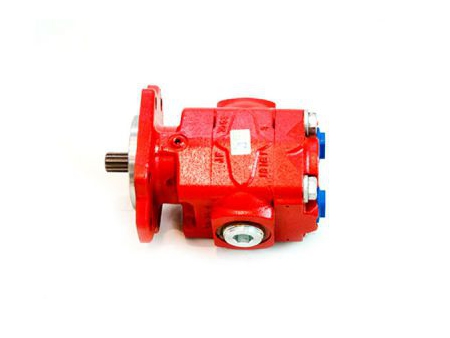

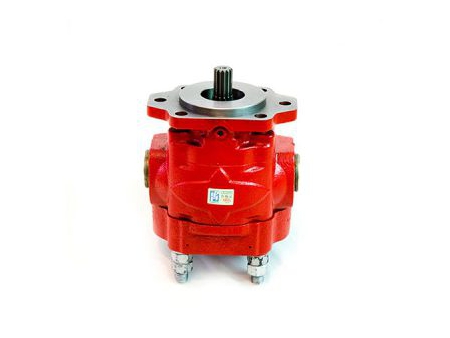

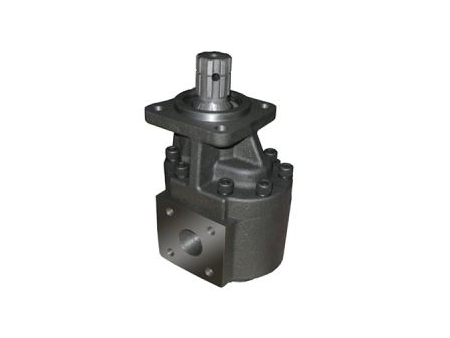

3.5PF | 52-115ml/r
Hydraulic Gear Pump
Within the diverse range of ten gear pump series, which spans a displacement from 0.16 to 199 ml/r to cater to a vast array of industrial requirements, the 3.5APF series emerges as a powerful solution for high-capacity hydraulic needs. Offering a displacement range of 52-115 ml/r, it is engineered for flexibility across both single and multiple unit setups, addressing the needs of even the most demanding hydraulic systems.
Key features of the 3.5APF series include
- A significant displacement range from 52 to 115 ml/r, designed to support a wide range of hydraulic applications.
- Automatic axial clearance compensation to ensure consistent performance and enhance durability.
- Manufactured with high-precision, imported CNC machining equipment to uphold the highest standards of quality.
- Renowned for its reliable quality and stable performance, the 3.5APF series stands as a proof of our commitment to hydraulic engineering excellence.

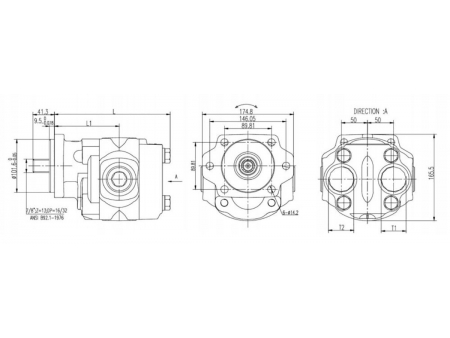

Dimensions
| Model | Pressure (bar) | Speed (r/min) | L | L1 | T1 | T2 | ||||
| Displacement (ml/r) | Nominal | Max. | Nominal | Max. | Min. | (mm) | (mm) | (mm) | (mm) | |
| 3.5APF52L**S12-B-O | 52 | 170 | 210 | 1500 | 3600 | 600 | 181 | 206.5 | 1” | 1-1/4” |
| 3.5APF63L**S12-B-O | 63 | 170 | 210 | 1500 | 3600 | 600 | 187.5 | 216 | 1” | 1-1/4” |
| 3.5APF73L**S12-B-O | 73 | 170 | 210 | 1500 | 3600 | 600 | 193.5 | 225.3 | 1-1/4” | 1-1/4” |
| 3.5APF85L**S12-B-O | 85 | 150 | 180 | 1500 | 3600 | 600 | 200.5 | 235.5 | 1-1/4” | 1-1/4” |
| 3.5APF93L**S12-B-O | 93 | 150 | 180 | 1500 | 3600 | 600 | 206.5 | 244.5 | 1-1/2” | 1-1/4” |
| 3.5APF104L**S12-B-O | 104 | 150 | 180 | 1500 | 3600 | 600 | 213 | 254.5 | 1-1/2” | 1-1/4” |
| 3.5APF115L**S12-B-O | 115 | 120 | 140 | 1500 | 3600 | 600 | 219 | 263.5 | 1-1/2” | 1-1/4” |

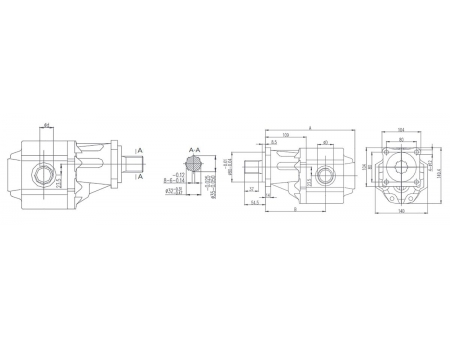

Dimensions
| Model | Displacement (ml/r) | Pressure (bar) | Speed (r/min) | A | B | D | d (mm) | |||
| Nominal | Max. | Nominal | Max. | Min. | (mm) | (mm) | (mm) | |||
| 3.5EPF82L00H27B | 82 | 210 | 300 | 2000 | 3000 | 300 | 233 | 157.5 | G1 | G1 |
| 3.5EPF95L99H27B | 95 | 210 | 300 | 2000 | 3000 | 300 | 239 | 160.5 | G1-1/4 | G1-1/4 |
The 3.5APF series, crafted from cast iron, thrives in demanding conditions with enhanced pressure resistance. These pumps are a mainstay in robust applications such as dump trucks and tipper trucks in the engineering sector, proving indispensable where resilience and dependability are paramount. Their robust construction and performance demonstrate the strength of cast iron pumps in heavy-duty operations across various industries.
