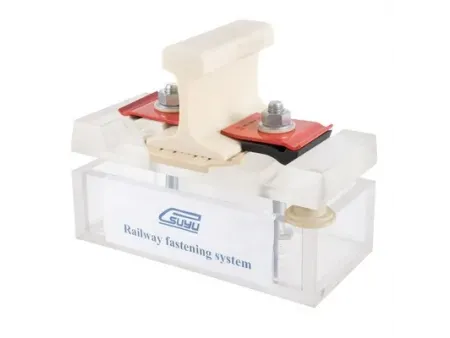

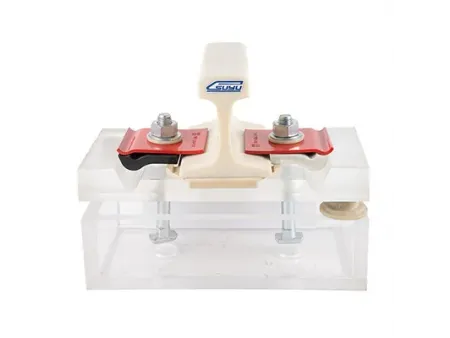

NY-GN Rail Fastening System
The NY-GN rail fastening system is specifically designed for railway projects in Mexico and North America, ideal for securing 115RE rails on concrete sleepers.
Elastic clip rail fastening system are widely used in railways worldwide, particularly popular in countries with high-speed rail networks where it plays a crucial role in maintaining track stability and safety. The NY-GN system helps ensure tracks remain securely fastened, reducing the risk of accidents and improving overall railway safety. By minimizing vibrations and reducing noise, the NY-GN fastening system enhances passenger comfort and operational efficiency, making it a preferred choice for modern rail networks.

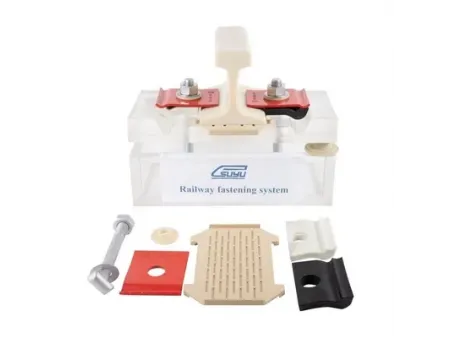

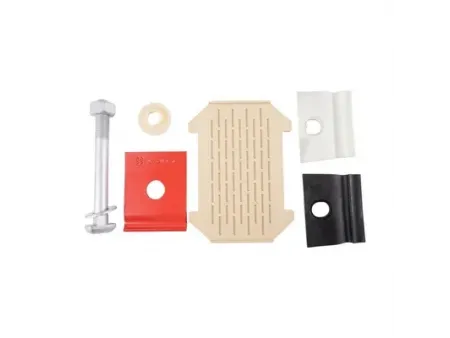

The complete NY-GN fastening system for each sleeper consists of the following components
-

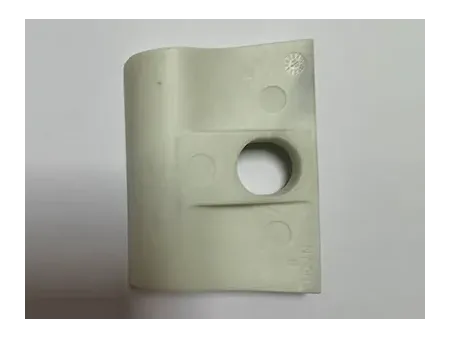

Interior Insulator(2 pcs)
-

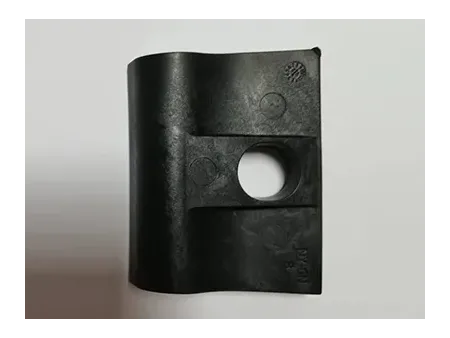

Exterior Insulator(2 pcs)
-

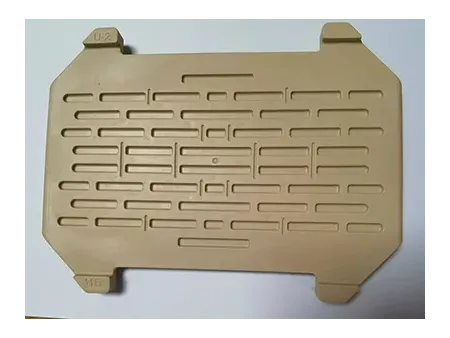

Rail pad U-2(2 pcs)
-

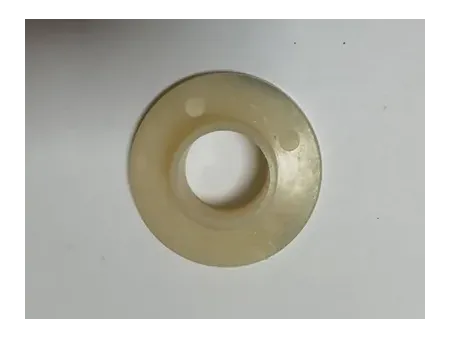

Insulating bush(4 pcs)
-

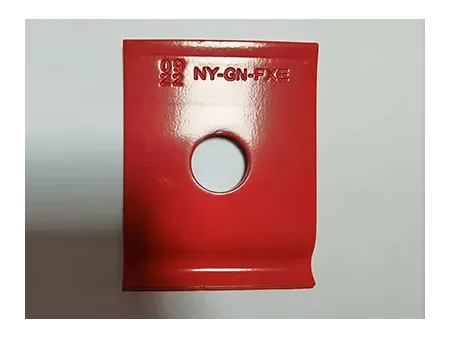

ES spring blade(4 pcs)
-

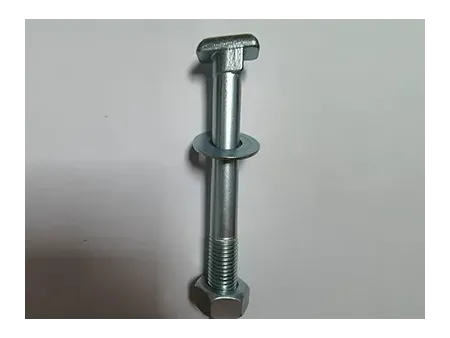

SL bolt with nut & flat washer 7/8*201(4 pcs)
| Part name | Item | Technical requirement | Remark |
| Type | 5mm Thickness | Application for different rail type | |
| Material | 60Si2Mn | Chemical composition(%): C: 0.56-0.64, Mn: 0.60-0.90, Si: 1.60-2.00, Cr: ≤0.35, P: ≤0.03, S: ≤0.03 | |
| Finish | Plain oiled, red color painting, or upon request | Offered as ordered | |
| Hardness | 42-47HRC | ||
| Standard refers to | DIN17221, GB/T1222 | ||
| Type | Suitable for UIC54, 115RE rails | ||
| Material | Reinforced Nylon 6 (PA6 30%GF) | Density: 1.39g/cm³, Tensile strength: 165Mpa, Elongation: 3.5%, Melting point: 226℃, Insulation resistance: ≥1.9×1012Ω, Glass fiber content: 30-35%, Hardness: ≥114HRR | |
| Color | Black, white or upon request | ||
| Type | Suitable for UIC54, 115RE rails | ||
| Material | TPE (Thermoplastic Elastomer ) | Density: 1.09g/cm³, Tensile strength: 4.23Mpa, Tensile Modulus: 2.97Mpa, Melting point: 200-220℃, Shore hardness: ≥40D | |
| Finish | Natural | ||
| Type | NY nylon washer | ||
| Material | Reinforced Nylon 6 (PA6) | Density: 1.15g/cm³, Tensile strength: 66.3Mpa, Elongation: 31.3%, Melting point: 228℃, Insulation resistance: ≥2.8×1012Ω, Hardness: ≥114HRR | |
| Finish | Natural | ||
| Type | 7/8*186/201 | ||
| Material | 45# | Chemical composition(%): C: 0.45, Mn: 0.65, Si: 0.25, P: 0.016, S: 0.001 | |
| Finish | Plain oiled, oxide black, zinc plated, hot dip galvanized | ||
| Grade | 8.8 | Tensile strength: ≥800Mpa, Yield strength: ≥640Mpa, Elongation: ≥12% | |
| Type | 7/8 | ||
| Material | 45# | Chemical composition(%): C: 0.45, Mn: 0.65, Si: 0.25, P: 0.016, S: 0.001 | |
| Finish | Plain oiled, oxide black, zinc plated, hot dip galvanized | ||
| Grade | 8 | HV295-353 | |
| Type | 50*23*3 | ||
| Material | Q235 | Chemical composition(%): C: 0.12-0.20, Mn: 0.30-0.70, Si: ≤0.3, P: ≤0.045, S: ≤0.045 | |
| Finish | Plain oiled, oxide black, zinc plated, hot dip galvanized | ||
| Hardness | HV200-300 |
