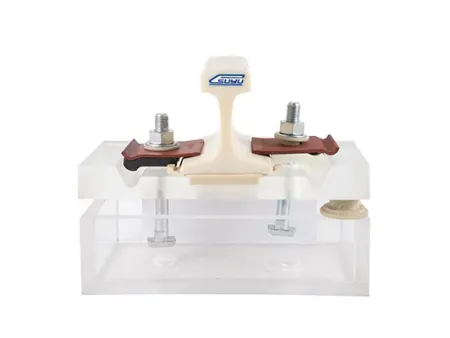

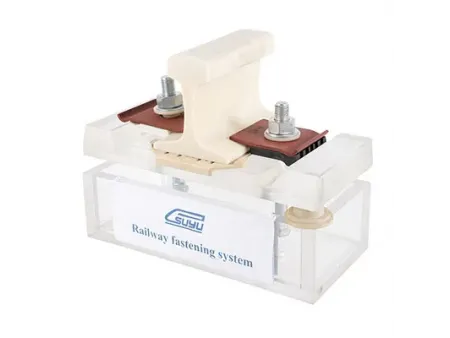

The NY-ES rail fastening system is designed for railway projects in Mexico and North America, specifically for securing 115RE rails on concrete sleepers. This system stands out for its cost-effectiveness, ease of installation and easier maintenance compared to other fastening systems.

Its design ensures that installation and operations are less complex, which contributes to reduced labor and service costs. It is favored for its simplicity, reliability, and ability to maintain the safety and stability of railway tracks.

Railway Fastening Components

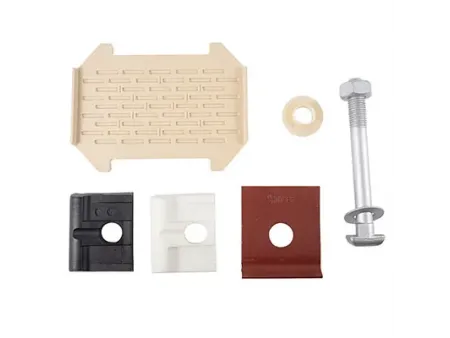

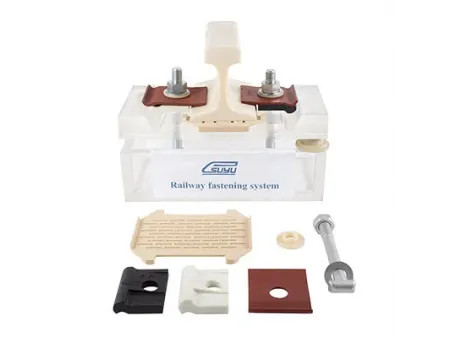

The complete NY-ES fastening system for each sleeper consists of the following components

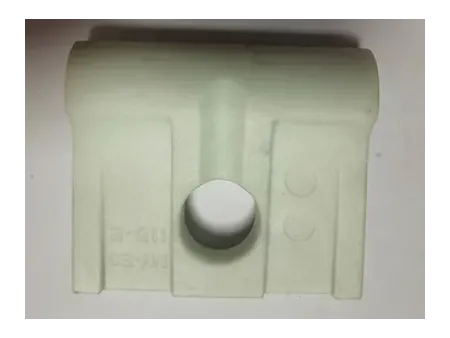

    1. Interior Insulator(2 pcs)

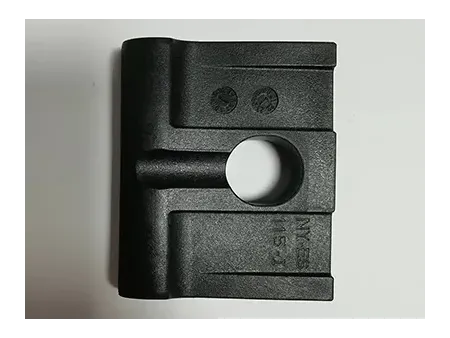

    1. Exterior Insulator(2 pcs)

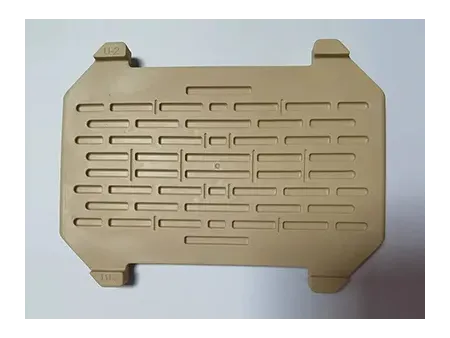

    1. Rail pad U-2(2 pcs)

    1. Insulating bush(4 pcs)

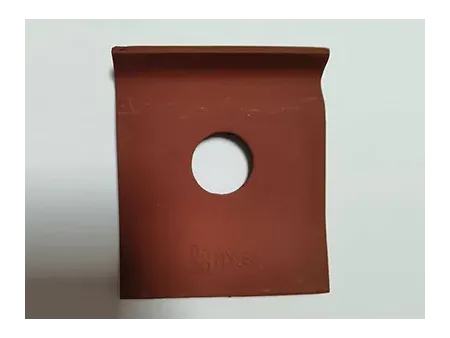

    1. ES spring blade(4 pcs)

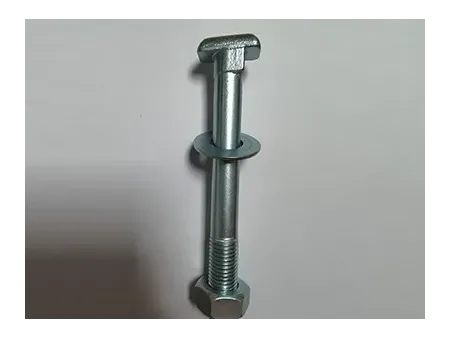

    1. SL bolt with nut & flat washer 7/8*201(4 pcs)

Technical Parameters
Part name Item Technical requirement Remark
Type 5mm Thickness Application for different rail type
Material 60Si2Mn Chemical composition(%): C: 0.56-0.64, Mn: 0.60-0.90, Si: 1.60-2.00, Cr: ≤0.35, P: ≤0.03, S: ≤0.03
Finish Plain oiled, red color painting, or upon request Offered as ordered
Hardness 42-47HRC
Standard refers to DIN17221, GB/T1222
Type Suitable for UIC54, 115RE rails
Material Reinforced Nylon 6 (PA6 30%GF) Density:1.39g/cm3, Tensile strength:165Mpa, Elongation: 3.5%, Melting point:226℃, Insulation resistance:≥1.9×1012Ω, Glass fiber content:30-35%, Hardness:≥114HRR
Color Black, white or upon request
Type Suitable for UIC54, 115RE rails
Material TPE (Thermoplastic Elastomer ) Density:1.09g/cm3, Tensile strength: 4.23Mpa, Tensile Modulus: 2.97Mpa, Melting point: 200-220℃, Shore hardness: ≥40D
Finish Natural

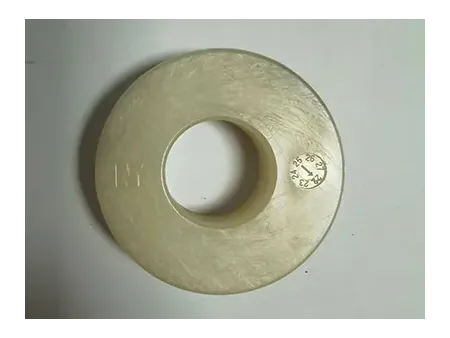

Type NY nylon washer
Material Reinforced Nylon 6 (PA6) Density: 1.15g/cm3, Tensile strength: 66.3Mpa, Elongation: 31.3%, Melting point: 228℃, Insulation resistance: ≥2.8×1012Ω, Hardness: ≥114HRR
Finish Natural
Type 7/8*186/201
Material 45# Chemical composition(%): C:0.45, Mn:0.65, Si:0.25, P:0.016, S: 0.001
Finish Plain oiled, oxide black, zinc plated, hot dip galvanized
Grade 8.8 Tensile strength:≥800Mpa, Yield strength: ≥640Mpa, Elongation: ≥12%
Type 7/8
Material 45# Chemical composition(%): C: 0.45, Mn: 0.65, Si: 0.25, P: 0.016, S: 0.001
Finish Plain oiled, oxide black, zinc plated, hot dip galvanized
Grade 8 HV295-353
Type 50*23*3
Material Q235 Chemical composition(%): C: 0.12-0.20, Mn: 0.30-0.70, Si: ≤0.3, P:≤0.045, S: ≤0.045
Finish Plain oiled, oxide black, zinc plated, hot dip galvanized
Hardness HV200-300
