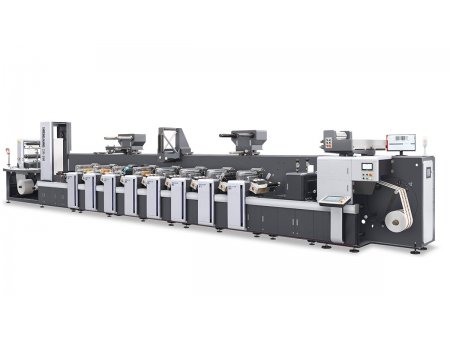

Flexo Printing Machine, ZBS-450G

Flexo Printing Machine, ZBS-450G
Request a Quote
  • Printing speed 55m/min
  • Printing color 3-6 colors
  • Max. width of paper 480mm
  • Max .printing width 450mm
Features
  • This ZBS-450G flexo printing machine uses the ceramic anilox roll for ink transfer.
  • Its printing plate in each printing unit allows 360° adjustment.
  • Our machine is designed with tripe rotary die cutting stations. Therein, the first and second stations are applicable for double sides die cutting, and the third station is used for sheeting or slitting printed materials.
  • In the standard configuration, the computer controlled web guider is mounted in the front of printing unit to keep the material in the right position all the time.
  • A series of optional devices is available. For example, the conveyer system can be applied in combination with the third die cutting station for conveying the finished products orderly. The static image monitoring device can be used to inspect the image quality for high speed printing.
  • Automatic magnetic powder tension controller is selected for unwinding and rewinding units. The double rewinding unit can be also mounted if needed.
  • When the flexo printing machine stops printing, the ink rollers will be separated from the printing roller automatically, and will keep low speed rotating to prevent the ink from drying.
  • Aside from the imported inverter, the machine also employs the main motor with advanced continuously variable frequency speed controller.
  • Easy for operation, this flexo printing machine is able to achieve the material feeding, printing, varnishing, drying, laminating, die cutting, rewinding and sheeting at one stroke.
Technical Specifications
Model
ZBS-450G
ZBS-450G
ZBS-450G
ZBS-450G
Printing speed 55m/min. 55m/min. 55m/min. 55m/min.
Printing color 3 colors 4 colors 5 colors 6 colors
Max. width of paper 480mm 480mm 480mm 480mm
Max .printing width 450mm 450mm 450mm 450mm
Max. unwinding/rewinding diameter 650mm 650mm 650mm 650mm
Printing length 175-355mm 175-355mm 175-355mm 175-355mm
Thickness of flexo plate 1.7mm or 1.14mm 1.7mm or 1.14mm 1.7mm or 1.14mm 1.7mm or 1.14mm
Precision of chromatography ±0.1mm ±0.1mm ±0.1mm ±0.1mm
Dimensions 2.6m×1.35m×2.1m 2.6m×1.35m×2.3m 2.6m×1.35m×2.6m 2.6m×1.35m×2.6m
Machine weight About 2650kg About 2800kg About 3100kg About 3100kg
Shipping Information
Packing Export standard wooden case
Model No. ZBS-450G
Standard 3-6 colors
Productivity 15sets per month
Unit Price/Payment USD16000-USD65000
H.S. Code 84431600
Trademark WEIGANG
Origin China
Min. Order 1 set
Transportation Land, sea, air
Options
  • Sheeter conveyer
  • UV dryer
  • Separate unwinder shelf (diameter up to 900mm)
  • Corona treater
  • Cold stamping unit
  • Video inspecting system
  • Safe cover for printing unit
  • Slitting unit
Details
  • Web guiding system
  • Three die cutting stations
  • Separate unwinder shelf with diameter of 900mm
  • Die cutting roller
  • Sheeter and conveyer belt
  • Slitter unit
