Automatic Pre Stretch Rewinder Manufacturer

Automatic Pre Stretch Rewinder

Request a Quote

View All: http://packingmachine-inc.com/2-12-automatic-pre-stretch-rewinder.html

Model: PPD-PRE600
Master roll: diameter ≤400mm, width ≤600mm
Finished roll: diameter ≤300mm, width ≤600mm
Film thickness: 0.01-0.05mm
Unwinding paper core diameter: 3 inch
Rewinding paper core diameter: 3 inch or customized
Rewinding speed (pre-stretched film roll): 600m/min
Rewinding speed (conventional film roll): 900m/min
Roll changeover: fully automatic
Main motor power: 3.0kW
Pre-stretch motor power: 1.5kW
Voltage: 220/380/415V

Applications

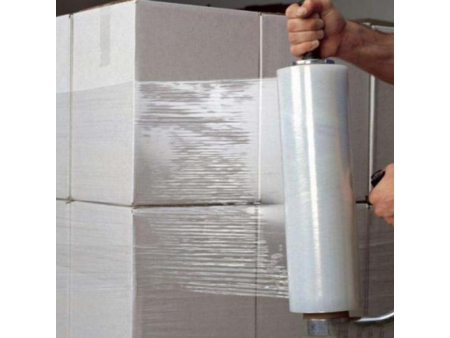

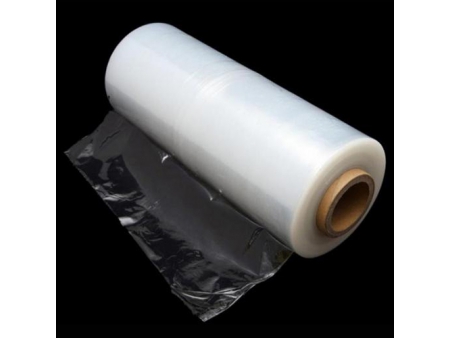

Automatic pre stretch rewinder is typically applicable to rewind stretch film, PE cling film, PVC cling film, industrial film, food wrap film, etc. This rewinding machine is featured by high automation, easy operation, and low maintenance cost.

Features

Pneumatic loading of master rolls, automatic feeding of paper core, automatic rewinding, automatic cutting and automatic roll changing;
Fully automatic PLC system, variable frequency control, LCD touch screen, easy to operate;
Able to preset stretch ratio, speed can reach 600m/min;
All electrical components are high quality products from world reliable suppliers;
