Joggle die, Amada Press Brake Tooling

Joggle die, Amada Press Brake Tooling
Joggle die, Amada Press Brake Tooling
Request a Quote
Need specific tooling that’s not listed? Leave your contact details, and our experts will assist you with a customized technical solution, at no additional cost.

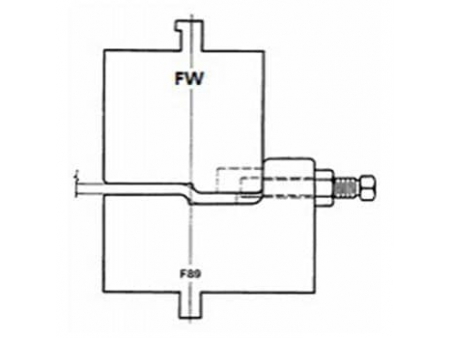

    The joggle die set 1 produces up to 5/16’’ open-angle offsets up. Block rotation changes the radius, and each corner features different radii in order to accommodate a variety of material thicknesses.

    The joggle die set 1 has a large outside radii to allow for offsets of thicker materials.
