4FV08 Foot Pedal Pilot Control Valve

4FV08  Foot Pedal Pilot Control Valve
4FV08  Foot Pedal Pilot Control Valve
4FV08  Foot Pedal Pilot Control Valve
Request a Quote
  • Foot pedal pilot control valves feature a compact structure that simplifies the installation process, making it an efficient choice for various machinery
  • Operated by foot, these control valves offer sensitive control and can be used in conjunction with pilot valve handles for combined hand-foot operation, enhancing the operator's control over the machinery
  • They ensure a steady output of control pressure, facilitating smooth and predictable operations
  • Customization of the pressure characteristics curve is available to satisfy requirements of multi-way directional control valves, offering versatility in application
Applications
  • Material handling equipment
  • Cranes
  • Agricultural machinery
  • Forestry equipment
  • Container lifting equipment
  • Drilling rigs
  • Trash compactors
Parameters
Nominal pressure (MPa) 5
Nominal flow (L/min) 16
Opening pressure(MPa) 0.5
Hydraulic oil Mineral oil (HL, HLP) in accordance with DIN 51 524
Fluid temperature range (℃) -20~100
Viscosity range (mm2/s) 10~380
Fluid cleanliness Not lower than GB/T 14039-93 level 19/16 or NAS 1638 level 10
Weight (kg) 12

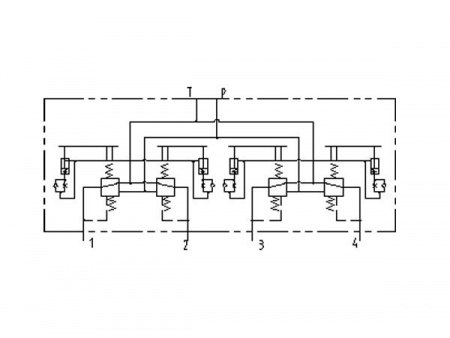

Hydraulic System Schematic Diagram

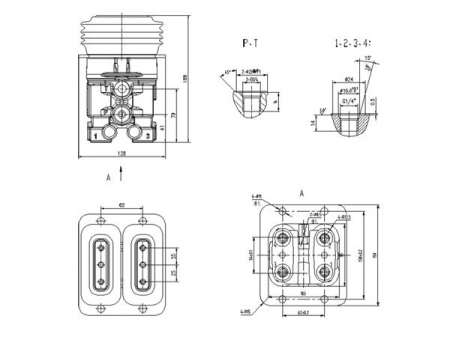

Installation Connection Dimension

Professional supplier engaged in the R&D, manufacturing, and sales of various hydraulic components

Annual production capacity of 250,000 sets of hydraulic components

Over 30 series and over 200 varieties and specifications to meet the specific needs of our clients
