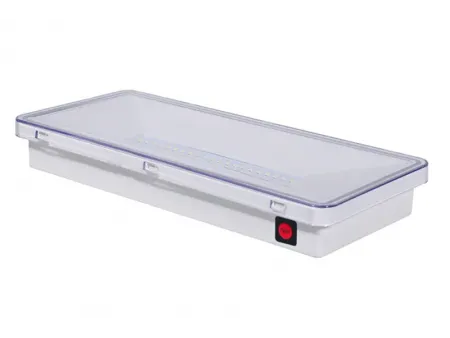

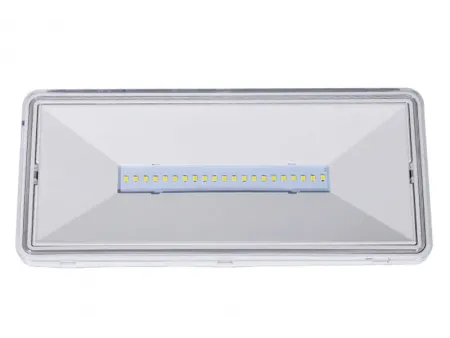

LE515-21 EXIT IP65 Waterproof LED Emergency Exit Sign (21 SMD3528 LEDs)
Request a Quote
Exit Lights
- IP65 waterproof LED emergency exit sign with 21 SMD3528 LEDs
- Ultra-thin housing with enhanced light distribution
- Built from ABS base and polycarbonate lens for durability
- Delivers up to 3 hours of emergency runtime
- Compatible with side-lit configuration accessories
- Directional arrow stickers available for installation flexibility
- Ingress protection rating: IP65
Specifications
| Model | LE515-21 EXIT | ||
| Mode of Operation | Maintained | ||
| Voltage | 220-240V 50-60Hz | ||
| Max. Power Consumption | 2.8W | ||
| Output Voltage | DC 5V ±0.5V | ||
| Output Power | 3.8W | ||
| Lumen Output | 160 lm | ||
| Battery | 3.6V 1500mAh Ni-MH | ||
| Max. Charge Current | 200mA | ||
| Max. Discharge Current | 500mA | ||
| Charging Time | 24H | ||
| Discharge Time | 3H | ||
| LED | 21pcs SMD 2835 | ||
| Certifications | CE, ROHS, IEC, BS, GS | ||
| Product Size | 268.5×120×136.2mm | ||
| Remarks | With single face acrylic sign, maintained | ||
| Ordering and Packing Information | |||
| MOQ | 1000pcs | ||
| Lead Time | 35 days | ||
| Sample Delivery Time | 3~10 days | ||
| Packing | Color box | ||
| Carton Size (L×W×H) | 40×29×21cm | ||
| Carton CBM | 0.024m³ | ||
| Quantity per Carton | 12pcs | ||
| Gross Weight | 8kgs/ctn | ||
| Net Weight | 7kgs/ctn | ||
| Container Loading Quantity | 1×20' | 1×40' | 1×40' HQ |
| 13750pcs | 28750pcs | 33500pcs | |
