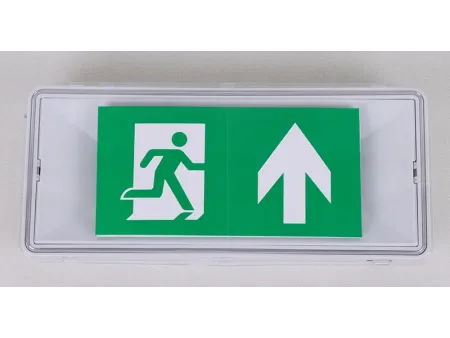

LE515-11 Waterproof LED Emergency Exit Sign Bulkhead (11 SMD2835 LEDs)
Request a Quote
Bulkhead Emergency Light
- Slim waterproof LED emergency exit bulkhead designed to combine clear signage with dependable lighting.
- Uses a tough ABS base and a polycarbonate diffuser that protect internal components and help maintain consistent illumination.
- Equipped with 11 SMD2835 LEDs, offering reliable light output to support safe evacuation.
- Provides up to 3 hours of emergency operation in case of a power outage.

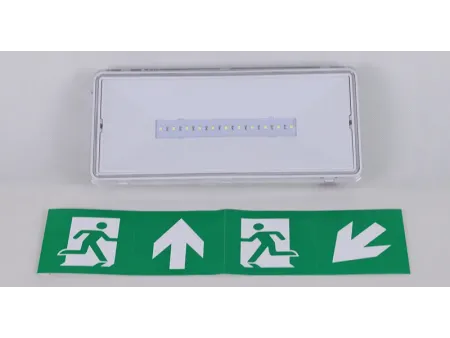

- The diffuser can be customized with self-adhesive labels to show exit symbols or directional guides.
- IP65 protection ensures it performs well in damp or wet locations, such as corridors, stairwells, or sheltered outdoor areas.
Specifications
Model | LE515-11 | ||
Mode of Operation | Maintained /Non-Maintained | ||
Voltage | 220-240V 50-60Hz | ||
Max. Power Consumption | 2.0W | ||
Output Voltage | DC 5V ±0.5V | ||
Output Power | 2.8W | ||
Lumen Output | 80 lm | ||
Battery | 3.6V 1000mAh Ni-MH | ||
Max. Charge Current | 100mA | ||
Max. Discharge Current | 280mA | ||
Charging Time | 24H | ||
Discharge Time | 3H | ||
LED | 11pcs×SMD 2835 | ||
Certifications | CE, ROHS, IEC, BS, GS | ||
Product Size | 268.5×120×36.2mm | ||
Ordering and Packing Information | |||
MOQ | 1000pcs | ||
Lead Time | 35 days | ||
Sample Delivery Time | 3~10 days | ||
Packing | Color box | ||
Carton Size (L×W×H) | 39×28.5×19.5cm | ||
Carton CBM | 0.022m³ | ||
Quantity per Carton | 12pcs | ||
Gross Weight | 6kgs/ctn | ||
Net Weight | 5kgs/ctn | ||
Container Loading Quantity | 1×20' | 1×40' | 1×40' HQ |
15000pcs | 31364pcs | 36545pcs |
