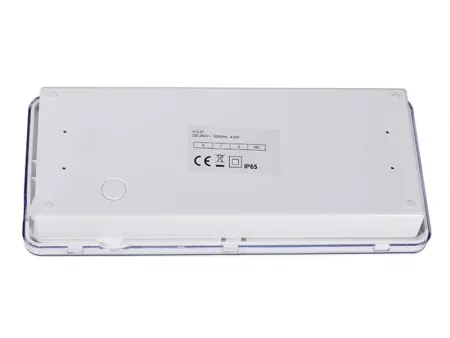

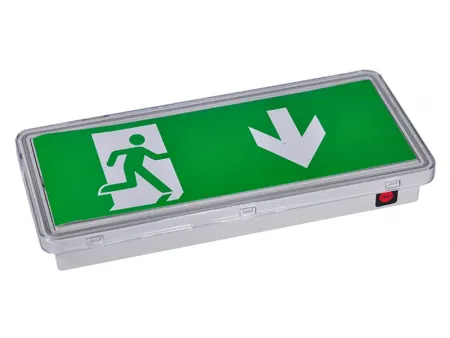

LE515-21 Waterproof LED Emergency Exit Sign Bulkhead (21 SMD2835 LEDs)
Request a Quote
Bulkhead Emergency Light
- Designed with a slim profile to blend into modern interiors while providing clear emergency exit illumination.
- Built with a tough ABS housing and a polycarbonate cover that shields the LEDs from dust and moisture.
- The 21 SMD2835 LEDs deliver bright, uniform light to keep escape routes visible when it matters most.
- Runs up to 3 hours on battery power to maintain safe passage during outages.
- Surface is ready for adhesive signage to mark exits or directions as needed.
- IP65 protection rating makes it a reliable option for damp areas and partially exposed installations.
Specifications
| Model | LE515-21 | ||
| Mode of Operation | Maintained /Non-Maintained | ||
| Voltage | 220-240V 50-60Hz | ||
| Max. Power Consumption | 2.8W | ||
| Output Voltage | DC 5V ±0.5V | ||
| Output Power | 3.8W | ||
| Lumen Output | 160 lm | ||
| Battery | 3.6V 1500mAh Ni-MH | ||
| Max. Charge Current | 200mA | ||
| Max. Discharge Current | 500mA | ||
| Charging Time | 24H | ||
| Discharge Time | 3H | ||
| LED | 21pcs×SMD 2835 | ||
| Certifications | CE, ROHS, IEC, BS, GS | ||
| Product Size | 268.5×120×36.2mm | ||
| Ordering and Packing Information | |||
| MOQ | 1000pcs | ||
| Lead Time | 35 days | ||
| Sample Delivery Time | 3~10 days | ||
| Packing | Color box | ||
| Carton Size (L×W×H) | 39×28.5×19.5cm | ||
| Carton CBM | 0.022m³ | ||
| Quantity per Carton | 12pcs | ||
| Gross Weight | 6kgs/ctn | ||
| Net Weight | 5kgs/ctn | ||
| Container Loading Quantity | 1×20' | 1×40' | 1×40' HQ |
| 15000pcs | 31364pcs | 36545pcs | |
