Gang Tool Type CNC Lathe
Request a Quote

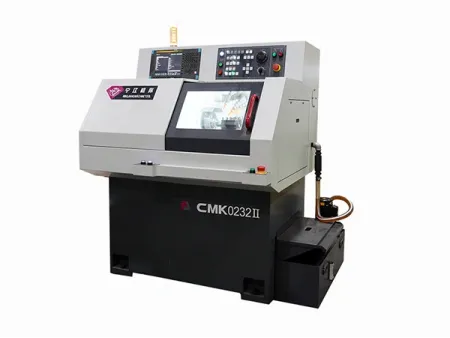

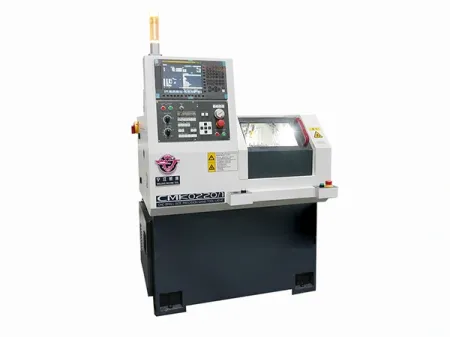

CMK0220Ⅱ & CMK0232Ⅱ
Compact CNC turning machine with gang tooling for precision machining of bars up to Ø20mm or Ø32mm and workpieces up to Ø100mm
Features
- The CNC lathe base is manufactured as a single high-strength casting that provides excellent rigidity and strong vibration resistance.
- A high-precision built-in motor spindle offers speeds up to 8,000 r/min with fast acceleration and deceleration response. Rapid traverse speeds of 24 m/min help shorten idle time.

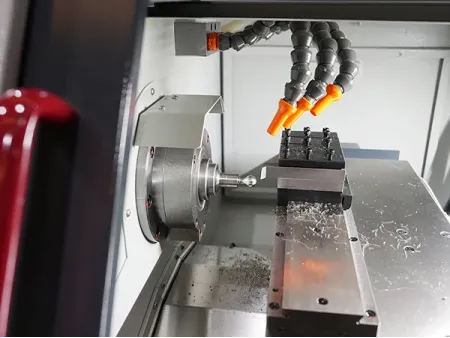

- A long-travel gang tool slide provides ample space for multiple tools and supports flexible tooling arrangements.
- The lathe features a compact footprint with an integrated structural design. The front-mounted operation panel improves accessibility and enhances operator convenience.
Sample Display
Technical Specifications
| Model | ||
| CNC system | FANUC | |
| Max. bar diameter (mm) | Ø20 | Ø32 |
| Max. bar diameter | 100 | |
| Max. Workpiece Diameter length (mm) | 100 | |
| Spindle through-hole diameter | Ø21 | Ø33 |
| Spindle motor power (kW) | 4.4 | 3.7/5.5 |
| Max. spindle speed (r/min) | 8000 | 6000 |
| Repeatability of all axes (mm) | 0.002 | |
| Radial runout of push-guide locating hole (mm) | 0.002 | |
| Rapid traverse (m/min) | 15 | |
| Machine weight (kg) | Approx. 1000 | Approx. 2000 |
| Overall dimensions (L×W×H) (mm) | 1100×1200×1500 | 1500×1600×1700 |
