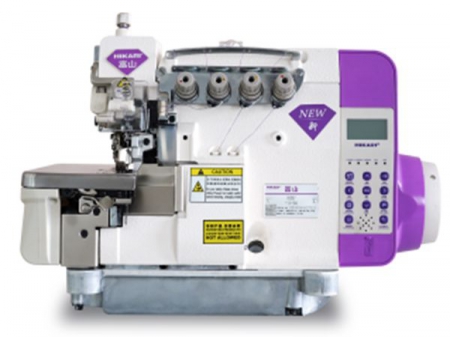

Overlock Sewing Machine, HX8V

Overlock Sewing Machine, HX8V
Overlock Sewing Machine, HX8V
Overlock Sewing Machine, HX8V
Overlock Sewing Machine, HX8V
Overlock Sewing Machine, HX8V
Request a Quote

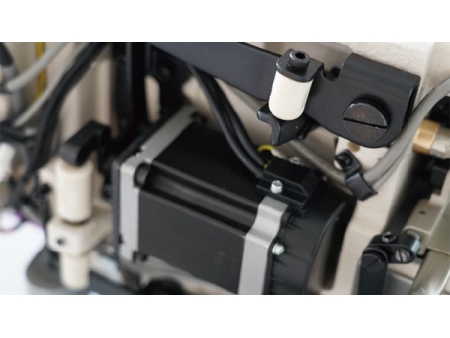

Computerized intelligent super high speed overlock sewing machine with stepper motor

Designed to surpass existing technology, this intelligent super high speed overlock sewing machine offers superior performance for a variety of applications, from lightweight to heavy fabrics.
Our patented auto-tension balancing technology ensures flawless stitches, regardless of fabric thickness, avoiding wrinkles and adapting seamlessly to changing material densities. Experience smooth and wrinkle-free stitches even when working with delicate fabrics. Additionally, this overlock sewing machine comes equipped with a cooling system that enhances its efficiency, all while providing a quieter work environment.

Specifications
Model Needle No. of Needles No. of Threads Needle pitch Stitch width Stitch length Differential ratio Presser foot lifting height Light Medium Heavy Speed (S.P.M) Dimensions
HX8V-04-02 DBx27#11 1 3 0 4mm 0.6-3.8mm 0.7-1.6 6 8000 534x430x563mm
HX8V-04-32 DBx27#11 1 3 0 1.5mm 0.6-3.8mm 0.7-1.6 6 8000 534x430x563mm
HX8V-14-03 DBx27#11 2 4 2 4mm 0.6-3.8mm 0.7-1.6 6 7500 534x430x563mm
HX8V-14-03C DBx27#11 2 4 2 4mm 0.6-3.8mm 0.7-1.6 6 7500r/min 534x430x563mm
HX8V-14-03KSC DBx27#11 2 4 2 4mm 0.6-3.8mm 0.7-1.6 6 7500 r/min 534x430x563mm
HX8V-14-04 DBx27#11 2 4 2 4mm 0.6-4.5 mm 0.7-1.6 7 7500 r/min 534x430x563mm
HX8V-14-04C DBx27#11 2 4 2 4mm 0.6-4.5 mm 0.7-1.6 7 7500 r/min 534x430x563mm
HX8V-14-04KSC DBx27#11 2 4 2 4mm 0.6-4.5 mm 0.7-1.6 7 7500 r/min 534x430x563mm
HX8V-14-04B1 DBx27#11 2 4 2 7mm 0.6-4.5 mm 0.7-1.6 7 7500 r/min 534x430x563mm
HX8V-14-04B1/C DBx27#11 2 4 2 7mm 0.6-4.5 mm 0.7-1.6 7 7500 r/min 534x430x563mm
HX8V-14-04L DBx27#11 2 4 2 4mm 12-7 mm 0.7-1.6 7 7500 r/min 534x430x563mm
HX8V-14-54 DBx27#11 2 4 2 4mm 0.6-4.5 mm 0.7-1.6 7 7500 r/min 534x430x563mm
HX8V-16-03 DBx27#14 2 5 3 4mm 0.6-3.8 0.7-1.6 5.5 7000 r/min 534x430x563mm
HX8V-16-03C DBx27#14 2 5 3 4mm 0.6-3.8 mm 0.7-1.6 5.5 7000 r/min 534x430x563mm
HX8V-16-03B DBx27#14 2 5 5 4mm 0.6-3.8 mm 0.7-1.6 5.5 7000 r/min 534x430x563mm
HX8V-16-03B/C DBx27#14 2 5 5 4mm 0.6-3.8 mm 0.7-1.6 5.5 7000 r/min 534x430x563mm
HX8V-16-04 DBx27#21 2 5 5 4mm 0.6-4.5 mm 0.7-1.6 7 7000 r/min 534x430x563mm
HX8V-16-04C DBx27#21 2 5 5 4mm 0.6-4.5 mm 0.7-1.6 7 7000 r/min 534x430x563mm
HX8V-18-03 DBx27#11 3 6 3×2 4mm 0.6-3.8 mm 0.7-1.6 7 7000 r/min 534x430x563mm
HX8V-18-03C DBx27#11 3 6 3×2 4mm 0.6-3.8 mm 0.7-1.6 7 7000 r/min 534x430x563mm
Features
    1. Technology Meets Personalization Our patented auto-tension balancing technology (Patent No. ZL202121327884.3) ensures a neat and wrinkle-free stitch on thin fabrics, adapting seamlessly to changes in fabric thickness.

    1. Digitized Control for Precision Digitally control foot lifter and thread cutter with fast movement and minimal noise. You can adjust foot lifter height from 0 to 9 mm, effectively handling different fabrics and challenging sewing techniques, eliminating the issues of overheating and reduced performance due to electromagnet aging.

    1. Intelligent Fabric Recognition Seamlessly switch between different fabrics with our intelligent fabric recognition, allowing for easy handling of thick, regular, thin, transparent, and mesh fabrics.

      • Cooling Innovation: Equipped with a self-cooling feature (Patent No. 2021206680574-4), reducing the machine's surface temperature by 6 degrees, ensuring optimal working conditions and enhanced comfort.
      • Enhanced Feed Mechanism: Optimized structure to enhance the feeding capacity, resulting in faster sewing speed.
      • Customizable Needle Position: Digitally adjust needle height, accommodating a wide range of sewing techniques.
      • Voice Prompts: Human-machine interaction with multi-language voice prompts, providing a personalized experience and boosting productivity.
