Request a Quote

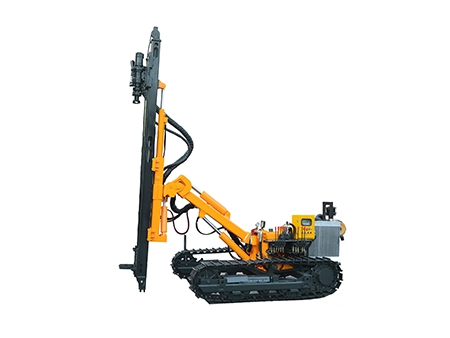

The KG310/KG310H down the hole drill rig for open use comes equipped with a Yuchai double-cylinder engine (China III). The drill rig has been thoroughly tested and meets all relevant national standards for emissions and environmental impact. The flexible derricking mechanism is qualified for horizontal drilling at a low level. The KG310H mining drill rig is equipped with a dust collector, resulting in a cleaner and safer work environment.

Brief Parameters
Drilling diameter: Φ80-105mm
Depth of economical drilling: 20m
Method of Feed: Oil cylinder-leaf chain
Feed stroke: 2670mm
Supporting power: Yuchai power YCCA13T6-45 (33.1KW/2400r/min)

Technical Parameters
Model of drill rig KG310 KG310H
Weight of complete machine 4000KG 4200KG
Outer dimensions 4650×2000×2200mm 4650×2500×2200mm
Drilling hardness f=6-20
Drilling diameter Φ80-105mm
Depth of economical drilling 20m
Rotary speed 0-120rpm
Rotary torque 1250N·m
Lifting force 18KN
Method of Feed Oil cylinder-leaf chain
Feed stroke 2670mm
Travelling speed 0-2.0km/h
Climbing capacity ≤30°
Ground clearance 250mm
Tilt angle of Beam Down:145°, up: 55°, total: 190°
Swing angle of boom Left: 100°, right: 45°, total: 145°
Pitch angle of drill boom Down: 50°, up: 25°, total: 75°
Compensation length of beam 900mm
Supporting power Yuchai power YCCA13T6-45 (33.1KW/2400r/min)
Drilling rod Φ60×2m
DTH hammer L3
Air consumption 7-15m³/min


Maximum height of horizontal hole 2650mm
Minimum height of horizontal hole 660mm
Detail features

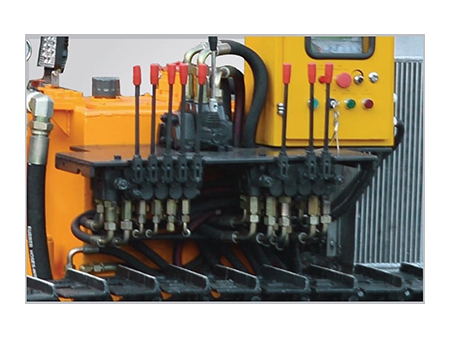

  • Easy Used Control Panel

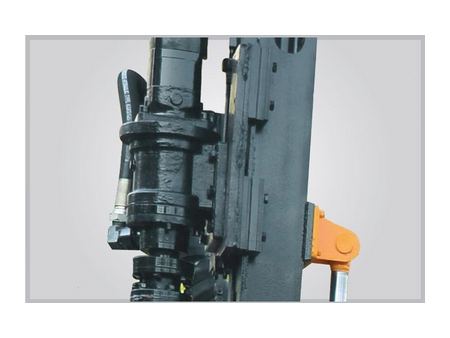

  • High torque gyrator

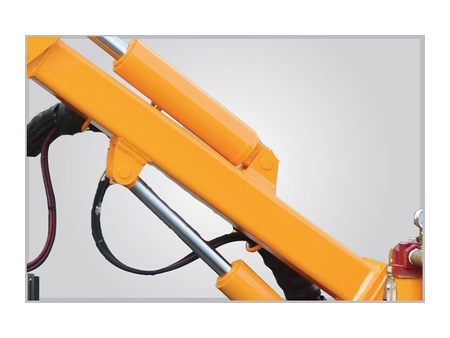

  • Stable hydraulic system

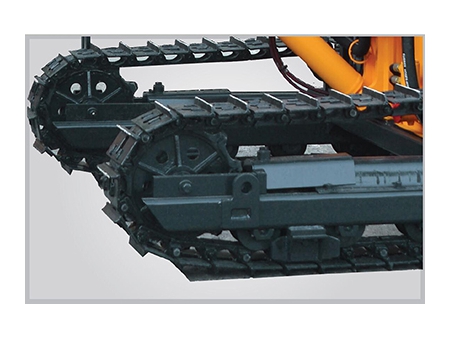

  • Steel track adaptable to all terrains

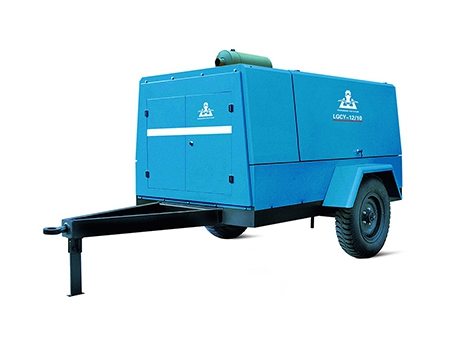

  • Air Compressor
