NG10 Standard Flow Parallel Circuit Manifold

NG10 Standard Flow Parallel Circuit Manifold
NG10 Standard Flow Parallel Circuit Manifold
NG10 Standard Flow Parallel Circuit Manifold
NG10 Standard Flow Parallel Circuit Manifold
NG10 Standard Flow Parallel Circuit Manifold
Request a Quote
Hydraulic manifold blocks

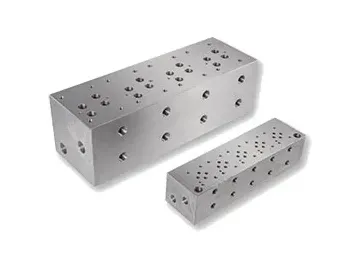

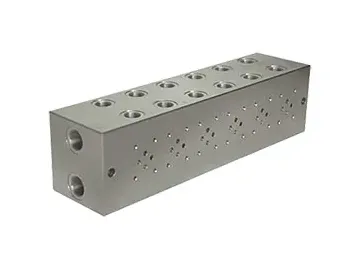

The NG10 standard flow parallel circuit manifold is a hydraulic manifold block designed for high-performance applications. Constructed from advanced technology and high-quality materials like aluminum and ductile iron, it offers durability and reliability. Aluminum manifolds are typically used under working pressures of up to 20 MPa, while iron manifolds can withstand pressures up to 35 MPa. The NG10 standard flow parallel circuit manifold's ports are versatile, available in BSP, NPT, SAE, and METRIC thread options, catering to a wide range of hydraulic system requirements.

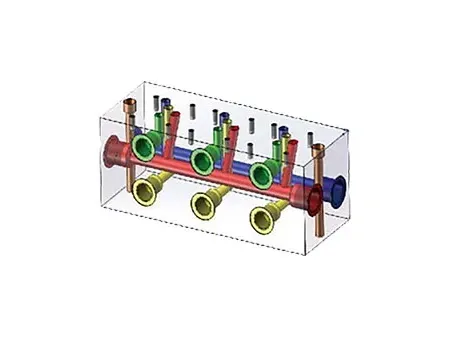

Architectural 3D

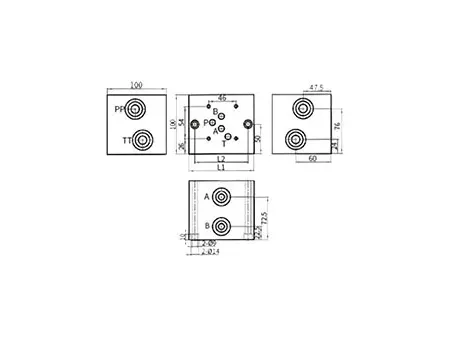

  • For detailed designs and specifications, please refer to the provided PDF document..

Specifications

Model L1 (mm) L2 (mm) P & T A & B Net Weight of Steel Manifold (kg) Net Weight of Aluminum Manifold (kg)
110 90 G3/4' G1/2' 7.7 2.67
185 165 G3/4' G1/2' 13.13 4.56
260 240 G3/4' G1/2' 18.56 6.45
335 315 G3/4' G1/2' 23.99 8.34
410 390 G3/4' G1/2' 29.42 10.22
485 465 G3/4' G1/2' 34.85 12.11
560 540 G3/4' G1/2' 40.28 14
635 615 G3/4' G1/2' 45.71 15.88
710 690 G3/4' G1/2' 51.14 17.77
785 765 G3/4' G1/2' 56.57 19.66
