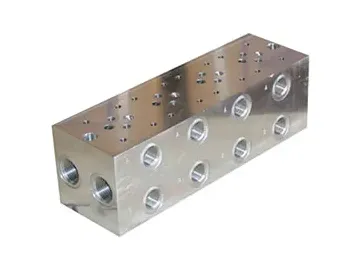

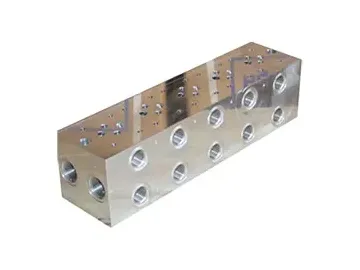

The NG6 standard flow parallel circuit manifold is a key component in hydraulic systems, specially designed to accommodate multiple valves on a single manifold. They are capable of assembling several valves together, utilizing a common pressure and tank connection; and are available in two models: an aluminum version capable of handling up to 3000 psi and a steel model designed for pressures up to 5000 psi. In parallel circuit systems, the flow is evenly distributed among all functions, allowing each valve to operate independently, which significantly enhances the hydraulic system’s flexibility and efficiency.

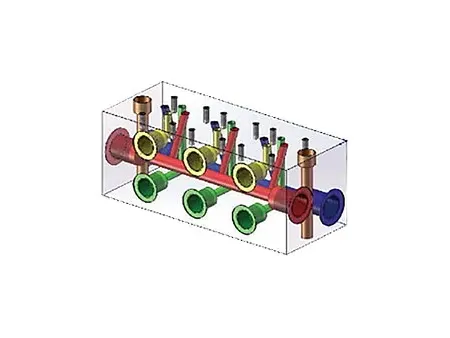

Architectural 3D

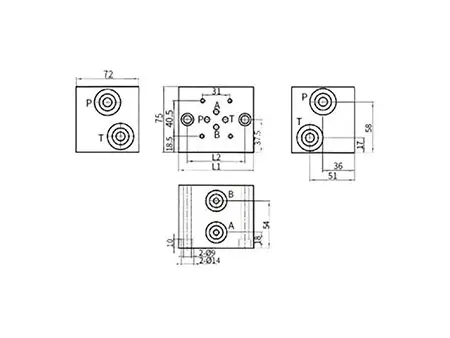

  • For detailed designs and specifications, please refer to the provided PDF document.

Specifications

Model L1 (mm) L2 (mm) P & T A & B Net Weight of Steel Manifold (kg) Net Weight of Aluminum Manifold (kg)
86 66 G1/2” G3/8” 3.16 1.1
136 116 G1/2” G3/8” 5.11 1.78
186 166 G1/2” G3/8” 7.06 2.45
236 216 G1/2” G3/8” 9.01 3.13
286 266 G1/2” G3/8” 10.96 3.81
336 316 G1/2” G3/8” 12.91 4.48
386 366 G1/2' G3/8” 14.86 5.16
436 416 G1/2” G3/8” 16.81 5.84
486 466 G1/2” G3/8” 18.76 6.52
536 516 G1/2” G3/8” 20.71 7.19
