Water Flow Regulators

Request a Quote

View All: http://hdmanifold-block.com/6-water-flow-regulators.html

The water flow regulator is an important device for operating injection molding machines, mold, blow molding machines, extruders, and chillers in rotameters.

Specifications

Type	Port Size	Ball Valve Size
Single Row	3/4, 3/8, or customizable	10mm, or customizable
Double Row	3/4, 3/8, 1 inch, or customizable	10mm, or customizable

Dimensions

Huada Hydraulics manufactures water flow regulators used for various kinds of injection molding systems, with customizable options for the number of inlet and outlet valves to meet specific customer needs.

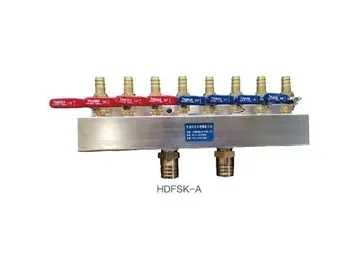

HDFSK-A (Single Row)
1	FSK-A-3-3	L=250	L1=160	L2=40
2	FSK-A-4-4	L=320	L1=165	L2=40
3	FSK-A-5-5	L=410	L1=240	L2=40
4	FSK-A-6-6	L=500	L1=240	L2=40

HDFSK-B (Double Row)
1	FSK-B-4-4	L=220	L1=115	L2=55
2	FSK-B-5-5	L=245	L1=150	L2=50
3	FSK-B-6-6	L=260	L1=165	L2=42
4	FSK-B-8-8	L=400	L1=200	L2=51

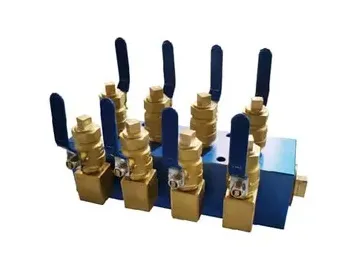

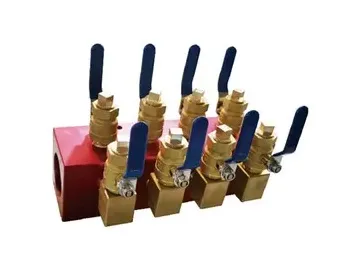

Examples of Water Flow Regulators

Optional Connectors

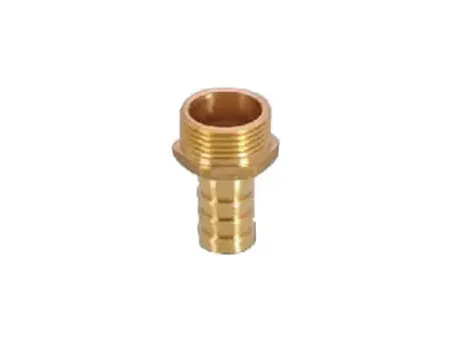

Barbed fittings

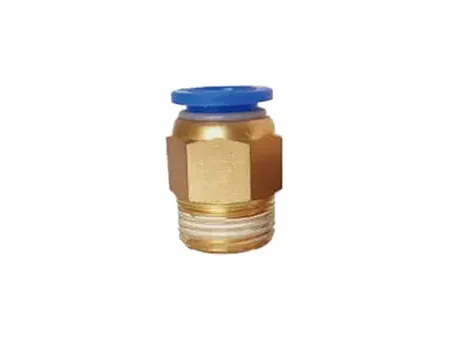

Push-to-connect fittings

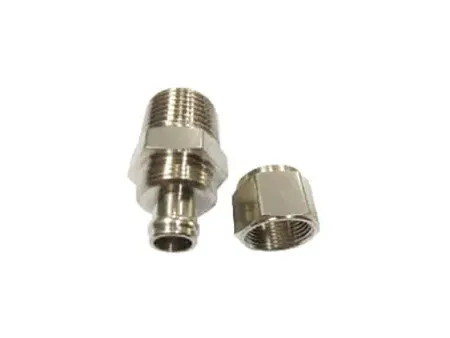

Quick connector
