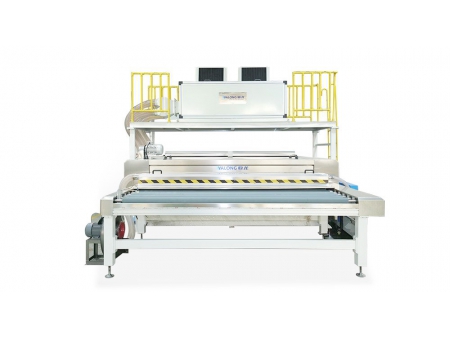

Solar Glass Washing Machine
Request a Quote
- With its PLC control, touch screen display and reliable operation, this glass washing machine is equipped to deliver long-term performance.
- Optimization design can be customized for glass deep processing to meet customers' specific needs.
- The fan box is equipped with an individual frame, and functions through an internal circulation system.
- A water tank is located externally, combined with an overflow water circulation system, allowing for efficient redistribution of any surplus fluids.
- Industrial aluminum alloy joints are employed in construction to ensure a sturdy and secure structure.
| Name | Model | Max. glass width (mm) | Min. glass size (mm) | Glass thickness (mm) | Working speed (m/min) | Machine dimensions (L*W*H) | Installed power (kW) |
| Glass washing machine (after edge grinding) | | 1500 | 300*300 | 1.6-6 | 5-20 | 6100*2300*3000 | 28.62 |
| Glass washing machine (grinding &coating) | | 1500 | 300*300 | 1.6-6 | 5-20 | 9100*2300*3000 | 35.09 |
| Glass washing machine (coating & screen printing) | | 1500 | 300*300 | 1.6-6 | 5-20 | 6665*2300*3000 | 31.75 |
| Packing washing machine | | 1500 | 300*300 | 1.6-6 | 5-32 | 7350*2300*3000 | 31.19 |
| Packing washing machine | 1500 | 300*300 | 1.6-6 | 5-40 | 8720*2300*3000 | 48.97 | |
| Packing washing machine | | 1500 | 300*300 | 1.6-6 | 5-45 | 9000*2300*3000 | 51.04 |
