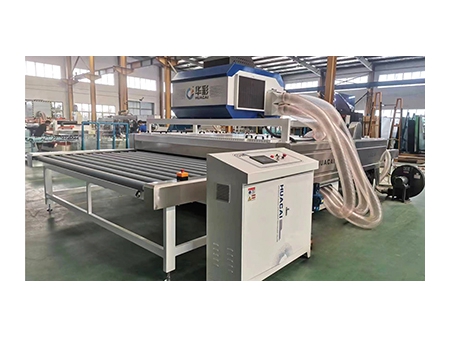

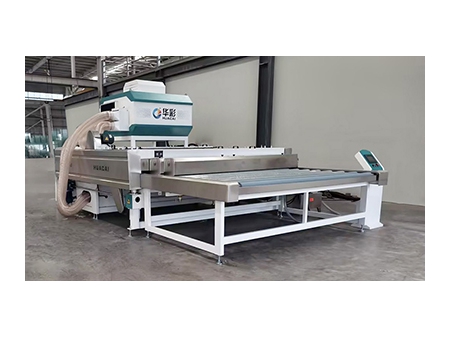

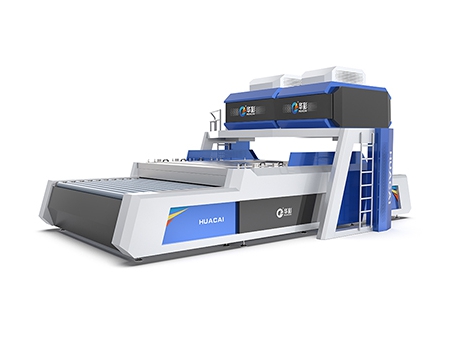

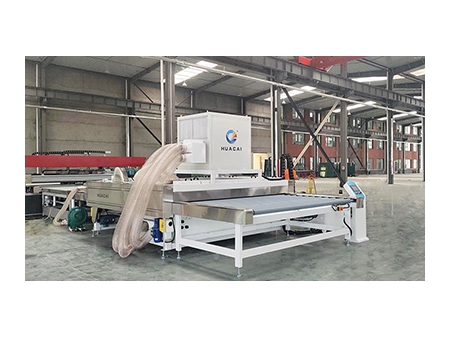

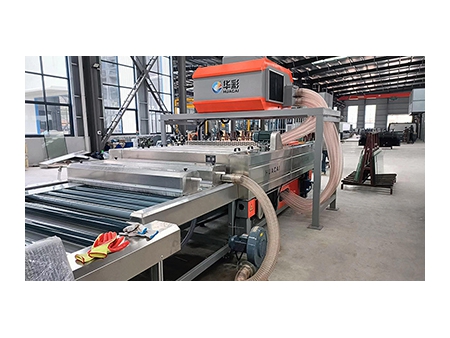

• The glass washing machine features a horizontal structure and consists of loading, washing, drying and unloading section, air blower, electric control cabinet, etc.
• Machine construction frame is welded by high-quality profiles with a coat of supreme paint.
• Transport rollers are optional amongφ60mm,φ85mm and 100mm full-vulcanized rubber rollers with high durability.
• Loading and pre-rinse section is equipped with a stainless-steel water tray and water spraying hose. All water-contact parts are made by stainless steel to prevent rust. The bottom of rubber transport rollers is dipped in water to pre rinse glass, so as to prevent contaminants entering the water tank and avoid scratching glass surface and rollers.
• Washing section. Adopting a high-strength elevating screw, the upper part of the washing and drying section is motorized for up and down lifting for easy operation and maintenance.
• Three pairs of brush rollers are adopted to clean float glass, Low-E glass and coated glass.
• Drying section is designed with compact footprint, low noise and high production capacity. Fans are mounted overhead the drying section, reducing occupied floor space. Fine filter screens are adopted on the air inlets of the fan boxes which are surrounded with sound dampening materials to lower the working noise without compromising on air blast capacity. Two pairs of air knives are subjected to Italian stainless-steel processing technology. Compared to traditional drying method, air knives provide unmatched drying performance.
• Transmission mechanism is driven by bevel gear delivering high stability and durability.
• Water reuse system is designed to control the water supply, save water resources and reduce production cost. Water tanks are made by superior stainless-steel panel. The joints with water pumps are equipped with "fast plugs" so that the water tanks can be easily taken out for cleaning.
• Electronic control system: motor, air blower, water pump, glass conveyor, lighting and lifting devices are all controlled by respective buttons. The horizontal glass washing machine features reasonable design, aesthetic appearance, user-friendly operations, VFD main drive and digital display of glass thickness. The lifting height is controlled by precise TOKY encoder and intelligent digital meter.
• The cover of glass washing machine is made by stainless steel, delivering high durability and cleanness.
• Self-circulation water supply system can utilize tap water and deionized water as water supply (deionization equipment is not included in the flat glass laminating line).

Note: When cleaning Low-E glass, due to the instable quality of Low-E glass, it’s necessary to pay attention to the daily maintenance of the glass washing machine and washing the glass in the specific way. It’s recommended to wash Low-E glass with deionized water or pure water (d- < 3mg/l, electrical conductivity< 20µs /cm, PH:6-8)
