Flow Dividers
Request a Quote
A combination of multiple hydraulic gear motors connected by a shaft
Technical Information
- Displacement: 3~250cm³/rev.
- Rotation direction: reversible (R)
- Min. speed: 600r/min
- Max. speed: 2500r/min
- Peak pressure: 150~250bar

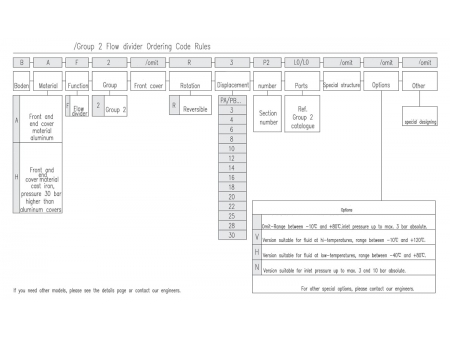

Group 2 Synchronous Flow Divider Ordering Code Rules

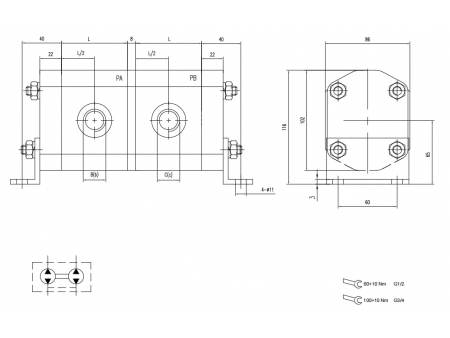

Group 2 Synchronous Flow Divider Standard Product Dimensions
| Displacement | Max. pressure | Max. speed | Min. speed | Dimensions | Oil port code | Inlet | Outlet | Oil port code | Inlet | Outlet |
| PA | PA | L | PA | B | c | PB | C | c | ||
| (cm³/rev.) | bar | (r/min) | (r/min) | mm | ||||||
| 3 | 250 | 2500 | 600 | 49.1 | L0 | G1/2 | G1/2 | L0 | G1/2 | G1/2 |
| 4 | 250 | 50.7 | L0 | G1/2 | G1/2 | L0 | G1/2 | G1/2 | ||
| 6 | 250 | 54 | L0 | G1/2 | G1/2 | L0 | G1/2 | G1/2 | ||
| 8 | 230 | 57.3 | L4 | G3/4 | G3/4 | L4 | G3/4 | G3/4 | ||
| 10 | 230 | 60.6 | L4 | G3/4 | G3/4 | L4 | G3/4 | G3/4 | ||
| 12 | 230 | 63.9 | L4 | G3/4 | G3/4 | L4 | G3/4 | G3/4 | ||
| 14 | 230 | 67.3 | L4 | G3/4 | G3/4 | L4 | G3/4 | G3/4 | ||
| 16 | 210 | 70.7 | L4 | G3/4 | G3/4 | L4 | G3/4 | G3/4 | ||
| 18 | 210 | 74 | L4 | G3/4 | G3/4 | L4 | G3/4 | G3/4 | ||
| 20 | 200 | 77.3 | L4 | G3/4 | G3/4 | L4 | G3/4 | G3/4 | ||
| 22 | 200 | 80.6 | L4 | G3/4 | G3/4 | L4 | G3/4 | G3/4 | ||
| 25 | 190 | 85.6 | L4 | G3/4 | G3/4 | L4 | G3/4 | G3/4 | ||
| 28 | 170 | 90.6 | L4 | G3/4 | G3/4 | L4 | G3/4 | G3/4 | ||
| 30 | 150 | 93.9 | L4 | G3/4 | G3/4 | L4 | G3/4 | G3/4 |
