Flow Dividers
Request a Quote
A combination of multiple hydraulic gear motors connected by a shaft
Technical Information
- Displacement: 1.4~230cm³/rev.
- Rotation direction: reversible (R)
- Min. speed: 600r/min
- Max. speed: 2500r/min
- Peak pressure: 150~230bar

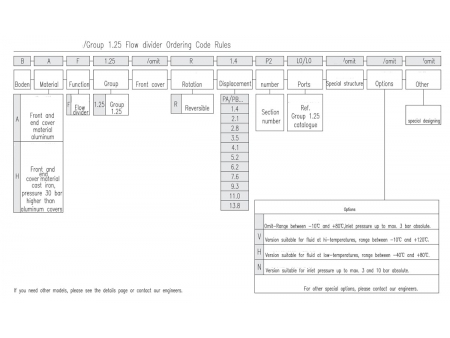

Group 1.25 Synchronous Flow Divider Ordering Code Rules

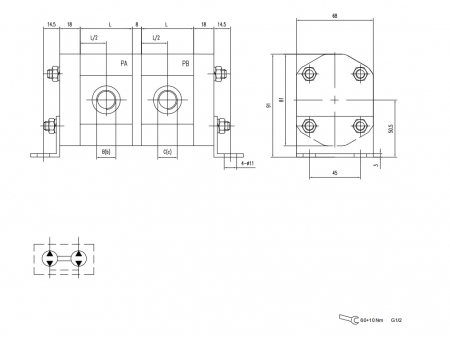

Group 1.25 Synchronous Flow Divider Standard Product Dimensions
| Displacement | Max. pressure | Max. speed | Min. speed | Dimensions | Oil port code | Inlet | Outlet | Oil port code | Inlet | Outlet |
| PA | PA | L | PA | B | c | PB | C | c | ||
| (cm³/rev.) | bar | (r/min) | (r/min) | mm | ||||||
| 1.4 | 230 | 2500 | 600 | 44.1 | L1 | G1/2 | G1/2 | L1 | G1/2 | G1/2 |
| 2.1 | 230 | 46.1 | L1 | G1/2 | G1/2 | L1 | G1/2 | G1/2 | ||
| 2.8 | 230 | 48.1 | L1 | G1/2 | G1/2 | L1 | G1/2 | G1/2 | ||
| 3.5 | 210 | 50.1 | L1 | G1/2 | G1/2 | L1 | G1/2 | G1/2 | ||
| 4.1 | 210 | 52.1 | L1 | G1/2 | G1/2 | L1 | G1/2 | G1/2 | ||
| 5.2 | 200 | 55.1 | L1 | G1/2 | G1/2 | L1 | G1/2 | G1/2 | ||
| 6.2 | 200 | 58.1 | L1 | G1/2 | G1/2 | L1 | G1/2 | G1/2 | ||
| 7.6 | 180 | 62.1 | L1 | G1/2 | G1/2 | L1 | G1/2 | G1/2 | ||
| 9.3 | 170 | 67.1 | L1 | G1/2 | G1/2 | L1 | G1/2 | G1/2 | ||
| 11 | 170 | 72.1 | L1 | G1/2 | G1/2 | L1 | G1/2 | G1/2 | ||
| 13.8 | 150 | 80.1 | L1 | G1/2 | G1/2 | L1 | G1/2 | G1/2 |
