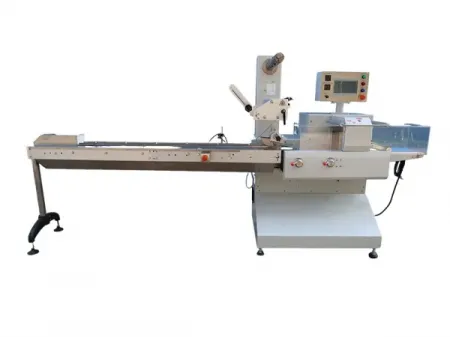

Horizontal Flow Wrapper
Request a Quote
The horizontal flow wrapper delivers excellent performance because of the following features:
- Dual frequency control system
- Cut-to-length function without adjustment, reducing downtime and saving film materials
- HMI for easy operations
- Simple parameters adjustment
- Self-diagnosis and failure reason display
- Color code tracking with a high-sensitivity photoelectric sensor
- Digital input of cutting position with higher precision
- Independent PID temperature control
- Applicable to a variety of packaging films
- Auto film positioning and auto machine stop to save film
- Concise drive system
- Reliable machine quality
- Easy maintenance
- Software control for easy technology upgrade to cope with market changes
- Packaging speed: 40-230pcs/min
| Machine dimension | 3770*720*1450mm | Power | 2.6kw |
| Production capacity | 40-230pcs/min | Air pressure | 6kg/cm² |
| Weight | 900KG | Control system | PLC |
| Voltage | 220V/380V-50/60Hz | Detection method | Photoelectric detection |
