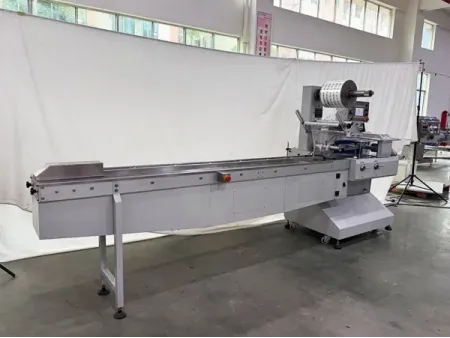

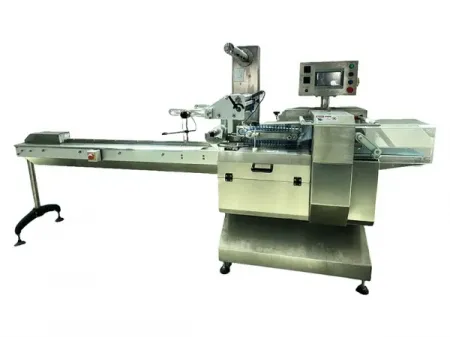

Horizontal Flow Wrapper

Horizontal Flow Wrapper
Horizontal Flow Wrapper
Horizontal Flow Wrapper
Request a Quote
Optional Features
  • Stainless steel machine frame
  • Ink roller printer, TTO printer, inkjet printer
  • Printing mark registration
  • Extended infeed conveyor
  • Double sealing jaw
  • “No Product, No Bag” function
  • Round hole pouch
  • Euro hole pouch
  • Automatic film splicer
  • Gas flushing system
Leave a Message
Applications

This flow wrapper is applicable for packing all kinds of solid and regular objects, including food products such as biscuit, bread, instant noodle, ice cream, moon cake and soft sweets, and other non-food items such as toilet soap, medicated essence, note book, pen pack, tape and medicines in regular shapes.

Features
  • PLC control system with 7” color touch screen control panel.
  • Triple-servo drive system to ensure film speed is automatically synchronized with conveyor speed
  • Servo-driven end seal jaw is automatically synchronized with product infeed speed and film speed.
  • All parts are built for easy maintenance and cleaning to minimize downtime
  • Pulling wheels are operated by means of pneumatic switches. The sealing wheels are designed to open automatically during every machine stops
  • Safety guards in compliance with CE standards and European safety regulations
  • Seamless integration: support installation on such as photocell sensors for printed film registration, printers for date, and auto-feeder line shaft
Specifications
Model AHP-390A-3S AHP-390B-3S
Packing Speed Up to 120ppm Up to 120ppm
Max. Film Width 390mm 390mm
Max. Product Height 70mm 70mm
Max. Bag Width 180mm 180mm
Sealing Jaw φ114 Single φ114 Single
Voltage 380-415V, 3ph, 50Hz 220V, 3ph, 60Hz 380-415V, 3ph, 50Hz 220V, 3ph, 60Hz
Power 3.5 kW 3.5 kW

The photoelectric tracking function ensures alignment of printed patterns, making it suitable for brand-customized film materials.
