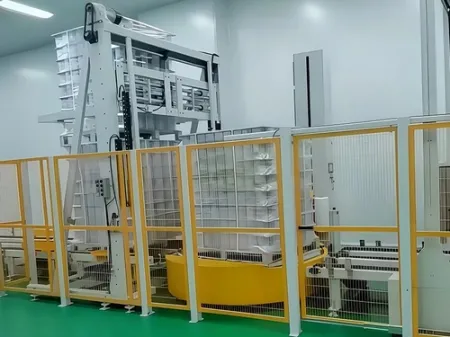

Automatic Pallet Stacking Machine (Double Load Stacker)
Request a Quote
Automatic pallet stacker for lifting, positioning and stacking palletized loads to specified heights
The double load stacker is primarily used to lift pre-palletized can stacks to a designated height for secondary stacking operations. It can be seamlessly integrated with sword-type strapping machines and stretch-wrapping machines.
Specifications
| Overall Dimensions | L2400×W1800×H2800mm |
| Applicable Pallet Types | Plastic or wooden pallets |
| Production Capacity | 20–40 pallets per hour |
| Load Capacity | Typically 500-2000 kg, customizable based on model and customer requirements |
| Pallet Size | 1200×1000×140mm (customizable) |
| Stacking Height | 2400mm (customizable) |
| Compressed Air Requirement | >0.5MPa |
| Installed Power | 10kW |
| Power Supply | 380V AC, 50Hz (adjustable according to regional standards) |
| Control System | PLC touchscreen control; supports manual/automatic modes; user-friendly operation |
| Drive System | Electric drive with high-performance frequency inverter for smooth start and stop |
