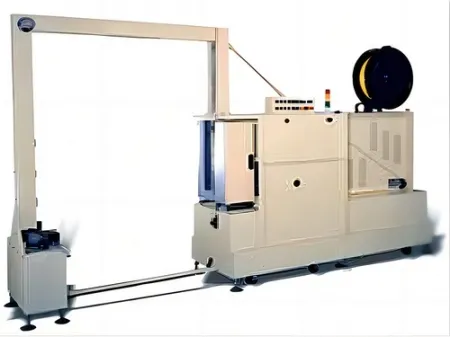

Automatic Vertical Pallet Strapping Machine
Request a Quote
Automatic pallet strapper for securing palletized loads with PP or PET strapping
The automatic vertical pallet strapping machine series is specifically designed for bundling palletized loads. Through automated control, it straps pallets, trays and their loads, using a heat-sealing method in which the moving arch guides the strapping to firmly bind the pallet and stacked goods together, ensuring safety during handling and transportation. This series can be linked with palletizers and stretch wrapping machines, further reducing labor costs and increasing overall production efficiency.
Specifications
| Series | BL-DZ30 |
| Strapping material | PP, PET |
| Strap size | Width: 12–17 mm; Thickness: 0.6–1.2 mm |
| Arch size | 2800 (H) × 2200 (W) mm (customizable) |
| Machine weight | 730 kg |
| Suitable load size | Width 600–800 mm × Height 1500–2400 mm |
| Strapping direction | Longitudinal, 4 straps |
| Operation speed | 30 s per strap path |
| Conveyor speed | 0–10 m/min |
| Max. binding force | 85 kgf |
| Voltage & power | 3-phase 380 V, 7 kW |
| Control components | PLC controller, photoelectric switch, limit switch and pneumatic control from well-known German, Japanese and Taiwanese brands |
