1000W Drive Motor Assembly, PMDC Brushless Motor TF120B-JY058A
Request a Quote
Your Motion
Features
The drive motor assembly provides excellent overall performance, combining a high loading capacity with a compact and economical design. Its well-engineered structure ensures smooth, reliable power delivery across a wide range of operating conditions.
Applications
It is suitable for various types of electric material-handling equipment, including electric pallet trucks and electric pallet jacks, offering stable and efficient drive support.
Technical Specifications
| Braking Mode | EM Brake |
| Matched Gear Ratio | 48:1 |
| Matched Motor | TF120B/BLDC Motor |
| Rated Voltage (V) | 48 |
| Rated Power (W) | 1000 |
| Rated Torque (N.m) | 1.75 |
| Rated Current (A) | 25 |
| Rated Revolution (RPM) | 5450 |
| No-load Current (A) | ≤4.5 |
| No-load Revolution (RPM) | 6200 |
| Rated Efficiency (%) | ≥78 |
| Working Cycle (min.) | S2-60 |
| Insulation Class | F |
| Protection Level | IP44 |

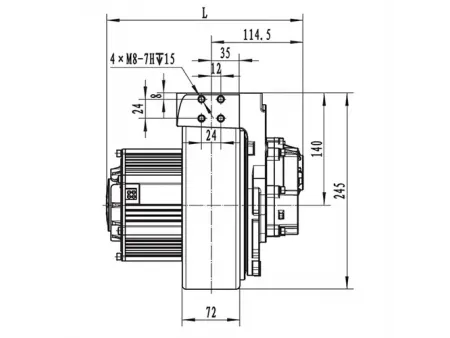

| Length (L/mm) | 245 |
