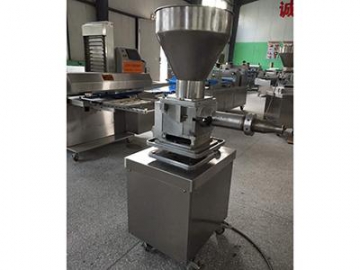

Stuffing Filling Machine

Request a Quote

View All: http://hyfoodmachine.com/2-3-dough-stuffing-filling-machine.html

Application

The Stuffing Filling Machine is used to stuff food in buns, pastries, bread and pasta. It can fill stuffing at a speed of 500pcs/h, and the stuffing amount is controlled through the use of a PLC control system. The stuffing diameter ranges between 6 to 45mm, and the stuffing nozzle can be changed based on the stuffing amount, making this equipment easy to operate.

Technical Parameters

Overall size (L x W x H)	1460x530x800mm
Output	500 pcs/h
Equipment power	1.5kw
Equipment weight	180kg
Stuffing filling diameter	6-45mm
Equipment voltage	220/380V
Finished product weight	20-150g/pc (bread or bun)
Equipment frequency	50HZ/60HZ

Machine composition diagram

1. Electrical parts

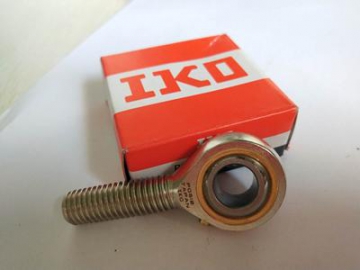

Japanese IKO bearing

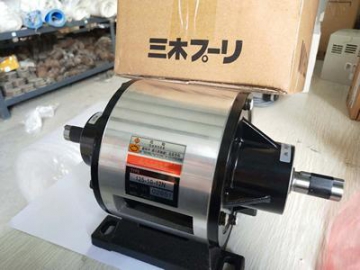

Mikipulley clutch

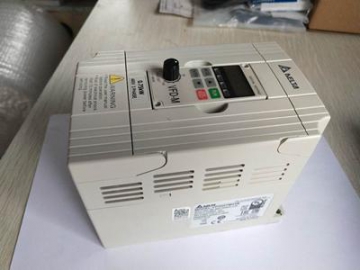

Delta inverter

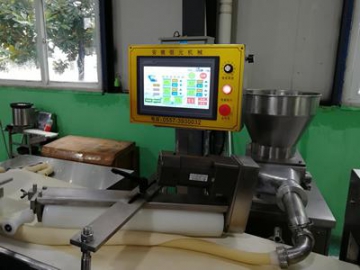

2. Control system

3. Machine frame
The entire machine frame is seamless edge welded using 304 stainless steel.

Features

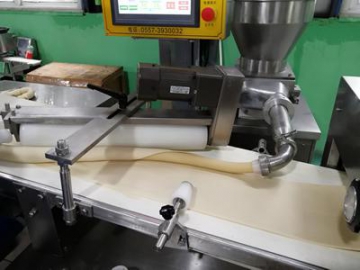

This Stuffing Filling Machine feeds in a uniform manner, allowing for a continuous filling process with no damage or empty filling.
This stuffing filling machine is applicable for soft and hard stuffing, vegetable stuffing, meat stuffing, red bean stuffing and other stuffing varieties.
