Surface finishing system for filling cracks and holes in flat surfaces

The coating feeder is used for putty filling on a variety of panels with uneven surfaces. The application of the coating feeder on a coating line eliminates the need for manual filling, and improves productivity. The suitable materials include furniture boards, wooden doors, floors, MDF panels, inorganic plates, etc.

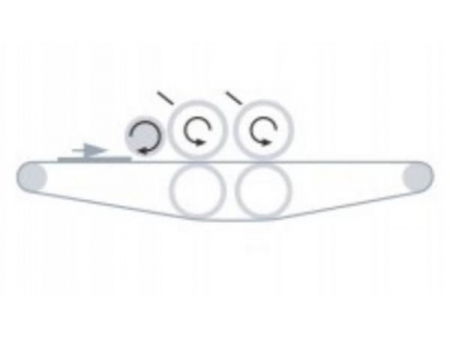

Working principle

The rubber covered roll on the coating feeder is coated in putty in order to fill panel surface pores as it passes over the panel. The filling roll is then used to wipe away excess putty for recovery and reuse.

Optional models

SR-R1B series coating feeder

Model Effective processing width (mm) Conveying power (kw) Power of coating roll (kw) Power of doctor roll (kw) Outline size (L*W*H)
620 620 0.75 0.75 0.55 1800*1850*1700
920 920 0.75 0.75 0.75 1800*2150*1700
1320 1320 1.5 1.5 0.75 1800*2450*1700
