GH019-HA Semi-automatic 6 inch Sewing Thread Winding Machine

  • Sewing thread cones

    for a conical package shape with 6" traverse length

  • ST
    Sewing yarn

    Sewing yarns are especially made to pass rapidly through a sewing machine. They are a fine cord of a fibrous material, which are made of two or more filaments twisted together. The yarns form efficient stitches without breaking or becoming distorted.

  • Spun yarn
    Staple spun yarn

    Textile yarn spun twisted from staple length fiber, either natural or synthetic.

  • CO
    Cotton

    Natural fibre from the cotton plant which is spun into fine yarn.

  • PET / PES
    Polyester

    Synthetic fiber made from a thermoplastic polymer that contains the ester functional group in their main chain. Most commonly refers to a type called polyethylene terephthalate (PET) or polyethylene succinate (PES) with a melting point from 103 - 106°C.

  • CV
    Viscose

    Viscose, formerly known as viscose rayon, is made by treating cellulose with caustic alkali solution and carbon disulphide. It is a soft fibre commonly used in dresses, linings, shirts, shorts, coats, jackets, and other outerwear.

  • TY
    Technical Yarns

    The yarns are used for technical textile products, which are manufactured for non-aesthetic purposes. The function such as rigidity, strength, dimension stability, design flexibility and economic viability is main feature.

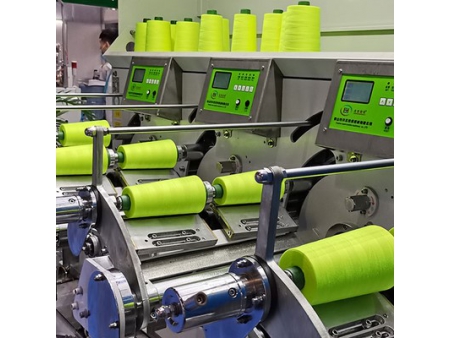

GH019-HA Semi-automatic high-speed 6 inch sewing thread winding machine is ideal to wind the embroidery threads, sewing threads and other threads into 6-inch cones.

Main specifications
Model GH019-HA
Shape formation Conic shape
Tube angle 0°~2°20′
Max. winding outside diameter Φ115mm
Spindle number 4
Max. linear speed 1000 m/min
Pattern round number 3~4
Winder parameter table on the top board
Parameter No. Name Value
0 Password 0000~99999
Param-value
1 Full spool length 0~30000 m
2 Winding linear speed 200~1000 m/min
3 Oil wheel speed ratio 30~2000
6 Winding initial tension 0~100%
7 Winding end tension 0~100%
8 Yarn-detector state 0.0~9999″
9 Empty spool position confirmation Computer test value
10 Fixed block position confirmation Computer test value
11 Length correction coefficient 0.800~1.200
Features
  • Computer-based yarn length measurement
    Non-contact yarn broken detector is sensitive.
    Computer-based yarn length automatic measuring system comes with an accuracy of ±0.5%.
    Automatic control of winding linear speed is flexibly set within 200-1000 m/min.
  • Grooved drum yarn guide system offers fast speed and low noise.
    Grooved drum is manufactured with special hard material and is treated by hardening and polishing, being smooth and wear-resistant and having no damage to the yarn.
  • Self-lubrication system
    Pump-based cycling-type oiling device allows for the setting of oil wheel speed ratio, ensuring uniform oiling combined with the constant linear speed. Each spindle is always kept at full oil level. Each oil wheel is configured with a filter to prevent oil spray and oil waste. Large return chute and oil deflector block and filter the cotton and return oil generated during the production, without polluting the ground. Movable filter screen is easy to clean.
  • LED screen is simple to operate
  • Oil tank features large capacity, and takes small space. Our semi-automatic winding machine comes with fast speed, high productivity and higher efficiency than traditional winding machines.
Advantages
  • Stainless steel screw
  • Full series of imported bearings
  • Japan Panasonic converter
  • Imported Samsung drive belt
