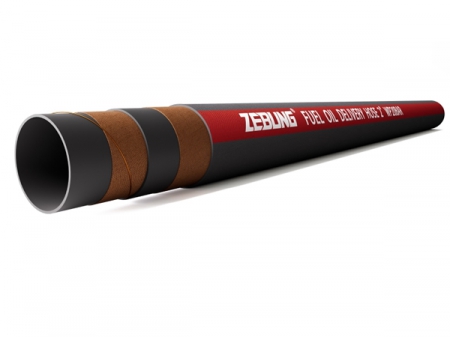

Fuel and Diesel Delivery Hose

Request a Quote

Website: http://zebungmarinehose.com/2-4-1-fuel-and-diesel-delivery-hose.html

This product has been discontinued and removed from our shelves.

Designed with copper wire, the fuel and diesel delivery hose can be manufactured in antistatic version. This rubber hose is used for handling diesel fuel oil and other petroleum products.

Construction
Tube: NBR
Reinforcement: High tensile textile cord
Cover: NBR CR
Safety factor: 3:1

Temperature Range
-20℃~80℃

Standard Compliance
HT/T2540-93

Technical Parameters

I.D.		O.D.	W.P.		B.P.		Weight	Length
mm	inch	mm	psi	bar	psi	bar	kg/m	ft	m
6	1/4"	14	300	20	900	60	0.18	328	100
8	5/16"	16	300	20	900	60	0.21	328	100
10	3/8"	18	300	20	900	60	0.25	328	100
13	1/2"	22	300	20	900	60	0.36	328	100
16	5/8"	26	300	20	900	60	0.48	328	100
19	3/4"	30.8	300	20	900	60	0.76	328	100
25	1"	36.8	300	20	900	60	0.94	328	100
32	1-1/4"	47.2	300	20	900	60	1.53	200	61
38	1-1/2"	53.8	300	20	900	60	1.88	200	61
51	2"	66.8	300	20	900	60	2.41	200	61
64	2-1/2"	81.2	300	20	900	60	3.1	200	61
76	3"	94	300	20	900	60	3.82	200	61
102	4"	120.8	300	20	900	60	5.45	200	61

Note: Specifications can be made upon request.
