Interleaf Satin Finishing Drums Manufacturer

Interleaf Satin Finishing Drums

Request a Quote

View All: http://indus-abrasives.com/2-4-2-interleaf-satin-grinding-drums.html

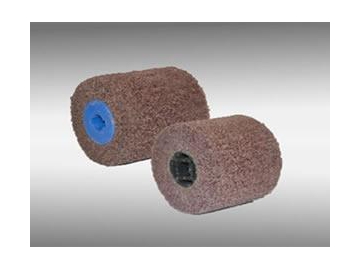

Joysun Combi interleaved satin finish drums are manufactured with an abrasive exterior made up of non-woven flaps with high quality refined alumina oxide grain. They feature a built-in plastic core with a keyhole for rapid changeover. The interleaved linear satin finish wheels are used to produce satin finishes onto a wide variety of different surfaces for various jobs. They minimize thermal load, which significantly increases speed and effectiveness for a fast job done right. They are recommended for jobs on large flat surfaces of stainless steel, high tensile alloys, carbon steel, aluminum alloy, non-ferrous metals, glass, plastic, marble and stone.

JAC-K726KS Interleaf Satin Finishing Drums

Availability

Product Code	JAC-K726KS	JAC-K727RS	JAC-K728VS
Abrasive Grains	Alumina Oxide	Alumina Oxide	Alumina Oxide
Backing Cloth Type	X-weigth Ply cotton/Non-woven	X-weigth Ply cotton/Non-woven	X-weigth Ply cotton/Non-woven
Flaps Fitted Version	Interleaved	Interleaved	Interleaved
Wheel Center Hole Type	Keyway Hole / Threaded Hole	Keyway Hole / Threaded Hole	Keyway Hole / Threaded Hole

SIZE	SIZE	OPT	MAX	GRIT	STD	PART #	PART #	PART #	PART #	PART #	PART #
( D x W x H )	( D x W x H )	RPM	RPM	GRIT	PACK	PART #	PART #	PART #	PART #	PART #	PART #
4" x 2" x 3/4"	100 x 50 x 19 mm	2,000	5,700	CRS 60	10	72006		72007		72008
				MED 60		72019		72010		72011
				MED 80		72022		72023		72024
				MED 100		72035		72036		72037
				MED 120		72048		72049		72040
				FIN 120		72051		72052		72053
				FIN 150		72064		72065		72066
				VFN 180		72077		72078		72079
				VFN 240		72080		72081		72082
				SFN 320		72093		72094		72095
4" x 4" x 3/4"	100 x 100 x 19 mm	2,000	5,700	CRS 60	10	72106		72107		72108
				MED 60		72119		72110		72111
				MED 80		72122		72123		72124
				MED 100		72135		72136		72137
				MED 120		72148		72149		72140
				FIN 120		72151		72152		72153
				FIN 150		72164		72165		72166
				VFN 180		72177		72178		72179
				VFN 240		72180		72181		72182
				SFN 320		72193		72194		72195
4-1/4" x 2" x 5/8"-11	105 x 50 x 5/8"-11	2,000	5,700	CRS 60	10		72206		72207		72208
				MED 60			72219		72210		72211
				MED 80			72222		72223		72224
				MED 100			72235		72236		72237
				MED 120			72248		72249		72240
				FIN 120			72251		72252		72253
				FIN 150			72264		72265		72266
				VFN 180			72277		72278		72279
				VFN 240			72280		72281		72282
				SFN 320			72293		72294		72295
4-1/4" x 4" x 5/8"-11	104 x 100 x 5/8"-11	2,000	5,700	CRS 60	10		72306		72307		72308
				MED 60			72319		72410		72411
				MED 80			72422		72423		72424
				MED 100			72435		72436		72437
				MED 120			72448		72449		72440
				FIN 120			72451		72452		72453
				FIN 150			72464		72465		72466
				VFN 180			72477		72478		72479
				VFN 240			72480		72481		72482
				SFN 320			72493		72494		72495
4-1/2" x 2" x 5/8"-11	115 x 50 x 5/8"-11	2,000	5,700	CRS 60	10		72506		72507		72508
				MED 60			72519		72510		72511
				MED 80			72522		72523		72524
				MED 100			72535		72536		72537
				MED 120			72548		72549		72540
				FIN 120			72551		72552		72553
				FIN 150			72564		72565		72566
				VFN 180			72577		72578		72579
				VFN 240			72580		72581		72582
				SFN 320			72593		72594		72595
4-1/2" x 4" x 5/8"-11	115 x 100 x 5/8"-11	2,000	5,700	CRS 60	10		72606		72607		72608
				MED 60			72619		72610		72611
				MED 80			72622		72623		72624
				MED 100			72635		72636		72637
				MED 120			72648		72649		72640
				FIN 120			72651		72652		72653
				FIN 150			72664		72665		72666
				VFN 180			72677		72678		72679
				VFN 240			72680		72681		72682
				SFN 320			72693		72694		72695
4-1/4" x 2" x M14-2	105 x 50 x M14-2	2,000	5,700	CRS 60	10		72706		72707		72708
				MED 60			72719		72710		72711
				MED 80			72722		72723		72724
				MED 100			72735		72736		72737
				MED 120			72748		72749		72840
				FIN 120			72851		72852		72853
				FIN 150			72864		72865		72866
				VFN 180			72877		72878		72879
				VFN 240			72880		72881		72882
				SFN 320			72893		72894		72895
4-1/4" x 4" x M14-2	105 x 100 x M14-2	2,000	5,700	CRS 60	10		72906		72907		72908
				MED 60			72919		72910		72911
				MED 80			72922		72923		72924
				MED 100			72935		72936		72937
				MED 120			72948		72949		72940
				FIN 120			72951		72952		72953
				FIN 150			72964		72965		72966
				VFN 180			72977		72978		72979
				VFN 240			72980		72981		72982
				SFN 320			72993		72994		72995
4-1/2" x 2" x M14-2	115 x 50 x M14-2	2,000	5,700	CRS 60	10		73006		73007		73008
				MED 60			73019		73010		73011
				MED 80			73022		73023		73024
				MED 100			73035		73036		73037
				MED 120			73048		73049		73040
				FIN 120			73051		73052		73053
				FIN 150			73064		73065		73066
				VFN 180			73077		73078		73079
				VFN 240			73080		73081		73082
				SFN 320			73093		73094		73095
4-1/2" x 4" x M14-2	115 x 100 x M14-2	2,000	5,700	CRS 60	10		73106		73107		73108
				MED 60			73119		73110		73111
				MED 80			73122		73123		73124
				MED 100			73135		73136		73137
				MED 120			73148		73149		73140
				FIN 120			73151		73152		73153
				FIN 150			73164		73165		73166
				VFN 180			73177		73178		73179
				VFN 240			73280		73281		73282
				SFN 320			73293		73294		73295
