Rigid Box Wrapping Machine, LY-800C
Semi-automatic rigid box forming machine for making wrapped rigid boxes
The LY-800C intelligent two-piece box wrapping machine is available for wrapping box whose sizes in 45-400 mm*45-380 mm*12-95 mm.

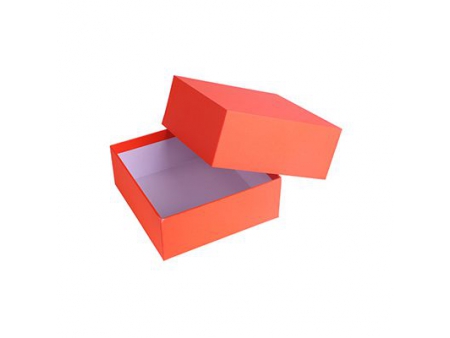

Sample BoxesThis rigid box wrapping machine sets itself apart from traditional ones by eliminating the need to change the pressure plate or blade during operation. Instead, the operator simply inputs the desired product size, and this paper box forming machine automatically adjusts the mold with precision and accuracy. This saves time and minimizes errors, resulting in a lower failure rate.
In addition, the LY-800C rigid box wrapping machine can perform various continuous operations, such as edge wrapping, flap folding, forming, and pressing bubbles. This makes it an ideal choice for producing a wide range of box shapes, including gift boxes, packaging boxes, phone boxes, shoe boxes, and other special boxes.
Parameters| Product Model | LY-800C |
| Voltage | 220 V |
| Max. Box Dimension | 400 mm*380 mm*95 mm |
| Min. Box Dimension | 45 mm*45 mm*12 mm |
| Manufacturing Speed | 15-25 pcs/min |
| Power | 2.1 kW |
| Weight | 1100 KG |
| Overall Size | 1460 mm*1100 mm*2130 mm |
- The rigid box wrapping machine is highly automated as it is controlled by PLC, ensuring efficient and quality-guaranteed production.
- Automatic troubleshooting and error detection allow for solving problem in time.
- User-friendliness saves labor cost, as the operators can spend less time learning how to use the wrapping machine.
- It is optional to equip molds in special shapes, which satisfies diversified market demands.
