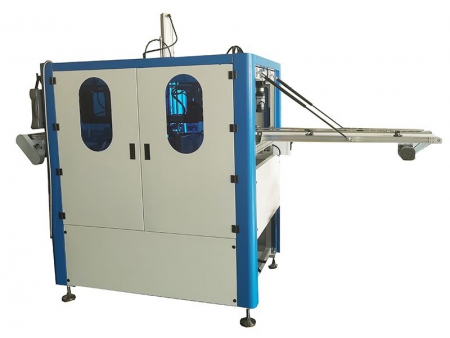

Rigid Box Pressing Machine, LY-380
Request a Quote
Used for removing bubbles from rigid boxes
The LY-380 rigid box pressing machine is specifically designed to meet the high appearance standards of paper box products. It can be used in conjunction with semi-automatic or fully automatic rigid box production lines for two-piece boxes. The rigid box pressing machine effectively eliminates the bubbles on the box surface caused by fast production speed. So, if you want to ensure a flawless surface finish of your paper box products, this rigid box pressing machine is an excellent choice.

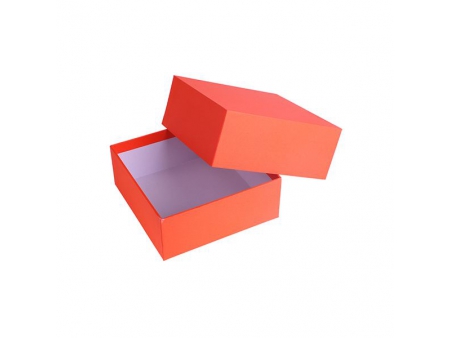

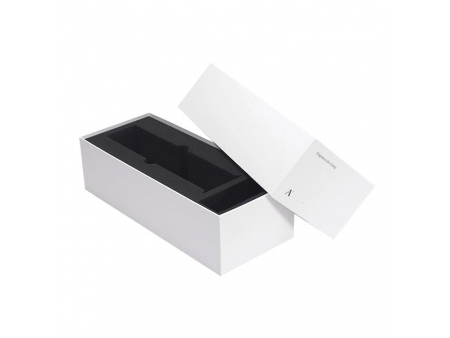

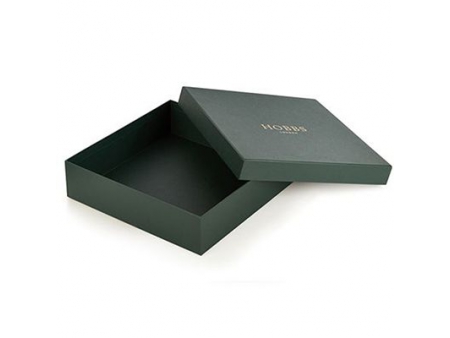

Sample BoxesParameters
| Product Model | LY-380 |
| Voltage | 220 V |
| Max. Box Dimension | 380 mm*380 mm*120 mm |
| Min. Box Dimension | 100 mm*80 mm*20 mm |
| Manufacturing speed | 18-22 pcs/min |
| Rated Power | 3 kW |
| Overall Size | 2400 mm*1150 mm*2200 mm |
| Weight | 1000 kg |
- The rigid box pressing machine makes the finished boxes more appealing after flawless bubble pressing.
- Low air consumption and noise help to reduce the gas costs.
- The rigid box pressing machine removes bubbles in a very short time, improving production capacity.
- Less gas cylinders are used, lowering after-sales service costs.
- Both thick and thin paper boxes can be pressed by the machine while maintaining excellent performance.
- Fast automatic box-grabbing manipulator improves production speed.
- The cylinder’s downward stroke can be adjusted according to the box height, allowing for customization.
- Belt conveyor can automatically stop once the box is in position.
- Direction of box output can be adjusted to suit customers’ needs.
- The rigid box pressing machine has a mold ejector for pushing the boxes out quickly, which shortens production cycles and improves efficiency.
- The rigid box pressing machine comes with an automatic shutdown system in case of malfunction, preventing further damage.
- The rigid box pressing machine can be separated from other parts and be freely moved by its wheels.
