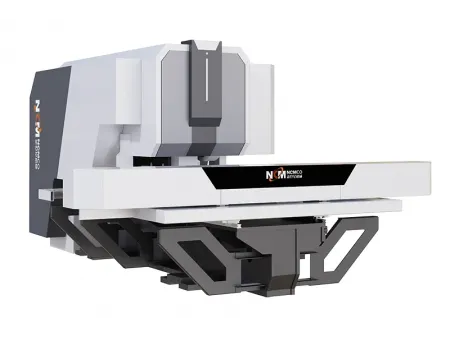

NCM-SC

Automatic punching machine for hole punching and notching prior to metal door frame formation

NCM-SC CNC punching machine is advanced equipment used for punching and forming the holes in steel and stainless steel door frames after frame forming, or for notching before frame forming. Its punching force can reach 40T with a maximum punching frequency of 260 times/min. The fixed tooling workstation structure ensures stable punching and can be customized according to your specific requirements. The multiple punching heads can simultaneously punch, resulting in higher production efficiency.

Applications

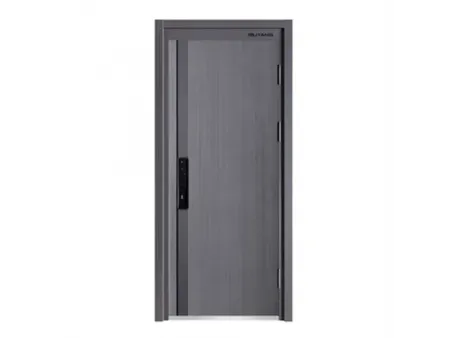

  • Security doors

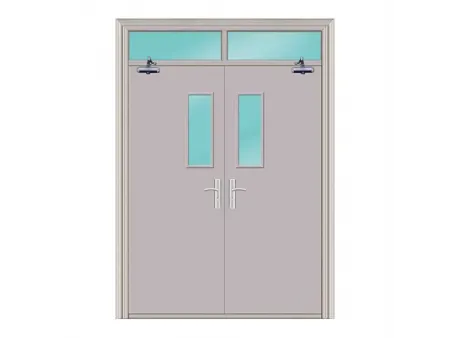

  • Fire-rated doors
  • Healthcare/hospital doors
  • Cleanroom doors
Features
  • Fixed tooling station structure ensures stable stamping.
  • Multiple punch heads can stamp simultaneously, improving production efficiency.
Technical Parameters
Punching pressure 40T
Punching stations 18
Tool layout Customizable
Sheet thickness 3.0mm (stainless steel) /5.0mm (cold rolled plate)
Sheet size 2500*1250mm
Processing weight 117kg
Error ±0.1mm
Punching speed 260pcs/min,adjustable
Worktable moving speed 40m/min
Control axis (X-Y) 2
Air pressure 6~8kg/cm2
Power supply 380/9V/kW
Dimensions 4500*3500*2300mm,standard
Weight 8.3T
Tailor made solutions for metal door manufacturing
