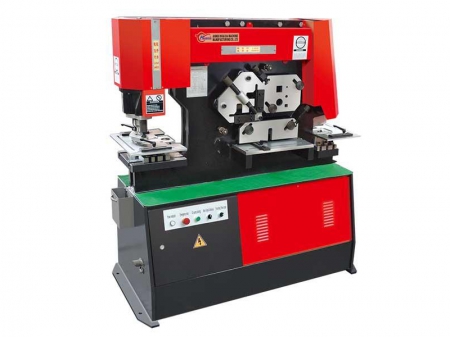

Hydraulic Punching Machine
Request a Quote
The hydraulic punching machine uses a hydraulic transmission, allowing it to shear punch and die shear a variety of plate steel, square steel, round steel, angle steel, channel steel, and I-beam steel. It is equipped with a shearing material arrestor.
-
Machine Weight (KG)
12000-18000
-
Mold Quantity
9(Customizable)
-
Maximum Workpiece Thickness (mm)
12-25
-
Maximum Punching Diameter (mm)
Φ50(Customizable)
Parameters
| Punching Force | ||||
| Machine Shape | Length (mm) | 4500 | 5500 | 8500 |
| Machine Shape | Width (mm) | 5000 | 5000 | 5000 |
| Machine Shape | Height (mm) | 2500 | 2500 | 2500 |
| Maximum Workpiece Size | Length (mm) | 2000 | 2500 | 4000 |
| Maximum Workpiece Size | Width (mm) | 800 | 800 | 800 |
| Machine Weight (KG) | 12000 | 13000 | 18000 | |
| Mold Quantity | 9(Customizable) | |||
| Maximum Workpiece Thickness (mm) | 12~25 | |||
| Grab | 2~3 | |||
| XY Axis Feed Velocity (m/min) | 40 | |||
| Maximum Punching Diameter (mm) | Φ50(Customizable) | |||
| Repositioning Function | Yes | |||
| Control Mode | Nc | |||
| Atmospheric Pressure (MPa) | 0.5 | |||
| Total Power of Machine (KW) | 25 | |||
